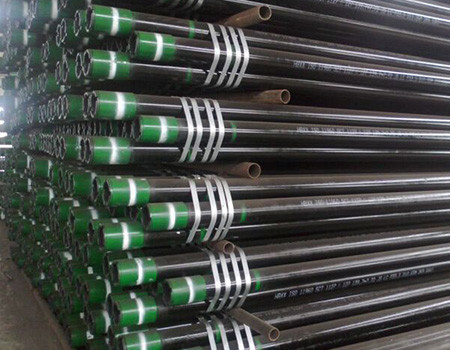

Hollow Steel Tube Casing Pipe 20 Inch Oil API For Oil Wells
5 PCS
MOQ
Negotiate
Price
Hollow Steel Tube Casing Pipe 20 Inch Oil API For Oil Wells
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: CHINA
Brand Name: ROSCHEN
Certification: ISO
Model Number: 4 ~ 20 inch
High Light:

Hollow Steel Tube Casing Pipe

,

Oil API Casing Pipe

,

20 inch Casing Pipe

Payment & Shipping Terms
Packaging Details: STEEL BUNDLE
Supply Ability: 1000000000 PCS
Specifications
Product Description

Casing Pipe, Oil Casing, API Casing, Well Casing, Casing Used for oil casing and tubing in oil wells as well as sidewall



Casing Pipe, Oil Casing, API Casing, Well Casing, Casing

Used for oil casing and tubing in oil wells as well as sidewall





Product: Casing Pipe, Oil Casing, API Casing, Well Casing, Casing
Application: Used for oil casing and tubing in oil wells as well as sidewall
Size: OD: 114.3mm-508mm
WT: 5-16mm
LENGTH: R1, R2, R3
Pipe Standard: API 5CT PSL1/PSL2 J55,K55,N80-1,N80-Q,
API 5CT PSL1/PSL2 L80-1, L80-9Cr,L80-13Cr,C90, C95, P110, Q125
Thread: NUE, EUE, VAM, STC, LTC, BTC, XC, VAM TOP, NEW VAM,HYDRILL CS
Special Service Sweet Service, Sour Service, Anti-H2S, NACE MR0175/ISO15156
Accessories: Pup Joint, Coupling, Drill Collar, Crossover etc.





Casing pipe






A casing pipe is a hollow steel tube that is typically rammed into place through the earth by using a hydraulic or pneumatic jack. After being driven, the displaced soil is removed and the product pipe, or carrier pipe, is inserted inside the steel tube.




Available Sizes



Category: ERW, HFW or SMLS



Standards: API 5CT PSL1/PSL2 J55,K55,N80-1,N80-Q,API 5CT PSL1/PSL2 L80-1, L80-9Cr,L80-13Cr,C90, C95, P110, Q125

Steel Grade: H40, J55, K55, N80



Connections


API 5CT is applicable to following connections which complied with API SPEC 5B:

• SC: Short round thread casing

• LC: Long ound thread casing

• BC: Buttress thread casing

• NU: Non-upset tubing

• EU: External upset tubing




Specification of Casing Pipe
DN O. D. Weight W. T. End Machining Form
Steel Grade
in mm lb/ft kg/m in mm H40 J55 L80 N80 C90 P110
K55 T95
4 1/2 4.5 114.3 9.5 14.14 0.205 5.21 PS PS
10.5 15.63 0.224 5.69 PSB
11.6 17.26 0.25 6.35 PSLB PLB PLB PLB PLB
13.5 20.09 0.29 7.37 PLB PLB PLB PLB
15.1 22.47 0.337 9.56 PLB
5 5 127 11.5 17.11 0.22 5.59 PS
13 19.35 0.253 6.43 PSLB
15 22.32 0.296 7.52 PSLB PLB PLB PLBE PLB
18 26.79 0.362 9.19 PLB PLB PLBE PLB
21.4 31.85 0.437 11.1 PLB PLB PLB PLB
23.2 34.53 0.478 12.14 PLB
24.1 35.86 0.5 12.7 PLB
5 1/2 5.5 139.7 14 20.83 0.244 6.2 PS PS
15.5 23.07 0.275 6.98 PSLB
17 25.3 0.304 7.72 PSLB PLB PLB PLBE PLB
20 29.76 0.361 9.17 PLB PLB PLBE PLB
23 34.23 0.415 10.54 PLB PLB PLBE PLB
26.8 39.88 0.5 12.7
29.7 44.2 0.562 14.27
32.6 48.51 0.625 15.88
35.3 52.53 0.687 17.45
38 56.55 0.75 19.05
40.5 60.27 0.812 20.62
43.1 64.14 0.875 22.22
6 5/8 6.625 168.28 20 29.76 0.288 7.32 PS PSLB
24 35.72 0.352 8.94 PSLB PLB PLB PLBE PLB
28 41.67 0.417 10.59 PLB PLB PLBE PLB
32 47.62 0.475 12.06 PLB PLB PLBE PLB
7 7 177.8 17 25.3 0.231 5.87 PS
20 29.76 0.272 6.91 PS PS
23 34.23 0.317 8.05 PSLB PLB PLB PLBE
26 38.69 0.362 9.19 PSLB PLB PLB PLBE PLB
29 43.16 0.408 10.36 PLB PLB PLBE PLB
32 47.62 0.453 11.51 PLB PLB PLBE PLB
35 52.09 0.498 12.65 PLB PLB PLBE PLB
38 56.55 0.54 13.72 PLB PLB PLBE PLB
42.7 63.54 0.625 15.88
46.4 69.05 0.687 17.45
50.1 74.56 0.75 19.05
53.6 79.77 0.812 20.62
57.1 84.97 0.875 22.22
7 5/8 7.625 193.68 24 35.72 0.3 7.62 PS
26.4 39.29 0.328 8.33 PSLB PLB PLB PLBE PLB
29.7 44.2 0.375 9.52 PLB PLB PLBE PLB
33.7 50.15 0.43 10.92 PLB PLB PLBE PLB
39 58.05 0.5 12.7 PLB PLB PLBE PLB
42.8 63.69 0.562 14.27 PLB PLB PLB PLB
45.3 67.41 0.595 15.11 PLB PLB PLB PLB
47.1 70.09 0.625 15.88 PLB PLB PLB PLB
51.2 76.19 0.687 17.45
55.3 80.3 0.75 19.05
8 5/8 8.625 219.08 24 35.72 0.264 6.71 PS
28 41.62 0.304 7.72 PS
32 47.62 0.352 8.94 PS PSLB
36 53.57 0.4 10.16 PSLB PLB PLB PLBE PLB
40 59.53 0.45 11.43 PLB PLB PLBE PLB
44 65.48 0.5 12.7 PLB PLB PLBE PLB
49 72.92 0.557 14.15 PLB PLB PLBE PLB
9 5/8 9.625 244.48 32.3 48.07 0.312 7.92 PS
36 53.57 0.352 8.94 PS PSLB
40 59.53 0.395 10.03 PSLB PLB PLB PLBE
43.5 64.73 0.435 11.05 PLB PLB PLBE PLB
47 69.94 0.472 11.99 PLB PLB PLBE PLB
53.5 79.62 0.545 13.84 PLB PLB PLBE PLB
58.4 86.91 0.595 15.11 PLB PLB PLB PLB
59.4 88.4 0.609 15.47
64.9 96.58 0.672 17.07
70.3 104.62 0.734 18.64
75.6 112.5 0.797 20.24
10 3/4 10.75 273.05 32.75 48.74 0.279 7.09 PS
40.5 60.27 0.35 8.89 PS PSB
15.5 67.71 0.4 10.16 PSB
51 75.9 0.45 11.43 PSB PSB PSB PSBE PSB
55.5 82.59 0.495 12.57 PSB PSB PSBE PSB
60.7 90.33 0.545 13.84 PSBE PSB
65.7 97.77 0.595 15.11 PSB PSB
73.2 108.93 0.672 17.07
79.2 117.86 0.734 18.64
85.3 126.94 0.797 20.24
11 3/4 11.75   42 62.5 0.333 8.46 PS
47 69.94 0.375 20.24
54 80.36 0.435 8.46
60 89.29 0.489 9.53
65 96.73 0.534 11.05
71 105.66 0.582 14.42
13 3/8 13.375 339.73 48 71.43 0.33 8.38 PS
54.5 81.1 0.38 9.65 PSB
61 90.78 0.43 10.92 PSB
68 101.19 0.48 12.19 PSB PSB PSB PSB PSB
72 107.15 0.514 13.06 PSB PSB PSB PSB
16 16 406.4 65 96.73 0.375 9.53 PS
75 111.61 0.438 11.13 PSB
84 125.01 0.495 12.57 PSB
109 162.21 0.656 16.66 P P P P
18 5/8 18.625 473.08 87.5 130.21 0.435 11.05 PS PSB
20 20 508 94 139.89 0.438 11.13 PSL PSLB
106.5 158.49 0.5 12.7 PSLB
133 197.93 0.635 16.13 PSLB
P——Plain ; S——Short-thread ; L——Long-thread ; B——Buttress thread ; E——Extreme thread







Chemical compositions of casing pipe
Standard Grade Chemical compositions(%)
API SPEC 5CT J55 C Si Mn P S Cr Ni Cu Mo V
K55 0.340.39 0.200.35 1.251.50 ≤0.020 ≤0.015 ≤0.15 ≤0.20 ≤0.20 / /
N80 0.340.38 0.200.35 1.451.70 ≤0.020 ≤0.015 ≤0.15 / / / 0.110.16
L80 0.150.22 ≤1.00 0.251.00 ≤0.020 ≤0.010 12.014.0 ≤0.20 ≤0.20 / /
P110 0.260.395 0.170.37 0.400.70 ≤0.020 ≤0.010 0.801.10 ≤0.20 ≤0.20 0.150.25 ≤0.08







Mechanical properties of casing pipe
Grade Type Total elongation under load (%) Yield strength (min) Yield strength (max) Tensile strength min Mpa Hardness Max (HRC) Hardness Max(HBW)
J55 - 0.5 379 552 517 - -
K55 - 0.5 379 552 655 - -
N80 1 0.5 552 758 689 - -
N80 Q 0.5 552 758 689 - -
L80 1 0.5 552 655 655 23 241
L80 9Cr 0.5 552 655 655 23 241
L80 13Cr 0.5 552 655 655 23 241
C90 - 0.5 621 724 689 25.4 255
C95 - 0.5 655 758 724 - -
T95 - 0.5 655 758 724 25.4 255
P110 - 0.6 758 965 862 - -
Q125 All 0.65 862 1034 931 - -









Our factory













Hollow Steel Tube Casing Pipe 20 Inch Oil API For Oil Wells 0

Hollow Steel Tube Casing Pipe 20 Inch Oil API For Oil Wells 1
Hollow Steel Tube Casing Pipe 20 Inch Oil API For Oil Wells 2Hollow Steel Tube Casing Pipe 20 Inch Oil API For Oil Wells 3







Packing


There are probably hundreds of different methods for packing a pipe, and most of them have merit, but there are two principles that are vital for any method to work prevent rusting and Sea transportation security.Our packing can meet any needs of the customers.


Hollow Steel Tube Casing Pipe 20 Inch Oil API For Oil Wells 4




Plastic caps plugged at the two sides of pipe ends
Should be avoided by the steel strapping and transport damage
Bundled signs should be uniform and consistent
The same bundle(batch) of steel pipe should be came from the same furnace.
The steel pipe has the same furnace number, the same steel grade, the same specifications.





Hollow Steel Tube Casing Pipe 20 Inch Oil API For Oil Wells 5



Manufacture Process:

Hollow Steel Tube Casing Pipe 20 Inch Oil API For Oil Wells 6


Equipment:
Hollow Steel Tube Casing Pipe 20 Inch Oil API For Oil Wells 7Hollow Steel Tube Casing Pipe 20 Inch Oil API For Oil Wells 8Hollow Steel Tube Casing Pipe 20 Inch Oil API For Oil Wells 9Hollow Steel Tube Casing Pipe 20 Inch Oil API For Oil Wells 10Hollow Steel Tube Casing Pipe 20 Inch Oil API For Oil Wells 11Hollow Steel Tube Casing Pipe 20 Inch Oil API For Oil Wells 12Hollow Steel Tube Casing Pipe 20 Inch Oil API For Oil Wells 13
