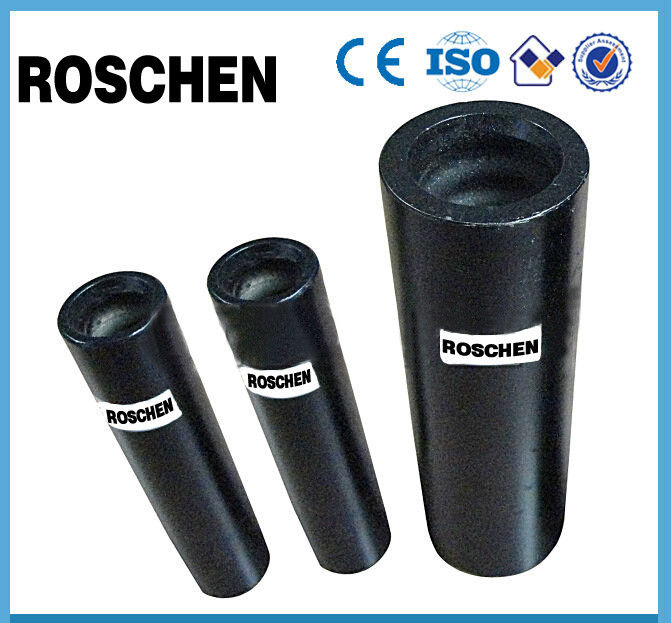

Gold , Black 33mm Adaptor Coupling sleeve with R22 R25 R28 R32 R38 Thread
Adaptor Couplings sleeve are used to connect several rods to each other
Material: Alloy steel bar
MOQ: No MOQ required for testing and trial order
Type: full-bridge,semi-bridge,same diameter etc.
Thread type: R22,R25,R28,R32,R38,T38,T45,T51
Color: Gold, Black
- Small non-threaded bridge in the center
- Smaller diameter steel end portions fit together in the center bridge area of the coupling
- Steel cannot thread past bridge area
- Semi-bridged couplings are most suited to high torque machines
- Most Rope and HM Threaded couplings are semi-bridged
- Eliminates the potential for the coupling to creep along the threaded joints
- Typically used in surface applications
- Better uncoupling characteristics and tend to maintain tighter joints
- Less chance of jamming
- Best suited to machines equipped with independent rotation (i.e., S36IR rock drill)
- Used when changing from one thread type, or size, to another and are typically required only in special circumstances.
|STEEL MERCHANT COUPLING/SOCKET DETAILS|
|Material||1.Carbon steel, 2.Alloy steel, 3.Stainless steel|
|DIN standard||Threads: DIN2999|
|American Standard||Threads:ASTM A865-9|
|Hydraulic Test||Working Pressure: Max 1.5MPa|
|Test Pressure: Max 2.5MPa|
|Temperature:||-20 ~ 120°c|
|Model||Half coupling/socket, full coupling/socket|
ØElectro galvanised ØNormal black/Shining black
SCH120,SCH160,STD,XS,XXS,CLASS A, CLASS B, CLASS C, etc.
Less than 12m or as buyer's
|Series||Heavy series, Standard series, Medium series, Light series|
|Application||fittings are widely used connected to the pipes with water,oil ,gas and so on.|
|Related products||1. Flanges||2. Malleable iron pipe fittings|
|3. Pipes||4. Carbon steel butt-welding fittings|
|5. Valves||6. High-pressure fittings|
|7. Brass fittings||8. P.T.F.E .thread seal tape|
|9. Copper fittings||10. Ductile iron pipe fittings|
|11. Grooved fittings||12. Sanitary fittings, etc,.|
|Customers’ drawings or designs are available.|
|Package||1. Cartons Without Pallets.
2. Cartons With Pallets.
3. Double Woven Bags
Or as buyer’s requirements.
|Delivery detail||According to the quantities and specifications of each order.
Normal delivery time is from 30 to 45 days after receiving the deposit.
|Contact Person :||Bill, George, Michael|
