T38 T45 T51 Shank Adapter Top Hammer Drilling for Rock / Mining

5 pcs
MOQ
T38 T45 T51 Shank Adapter Top Hammer Drilling for Rock / Mining
Features Gallery Product Description Request A Quote
Features
Specifications
High Light:

dth drilling tools

,

concrete core drill bit

Basic Infomation
Place of Origin: GERMANY
Brand Name: ROSCHEN
Certification: ISO9001
Model Number: T38, T45, T51, T60
Payment & Shipping Terms
Packaging Details: wooden box, carton
Product Description

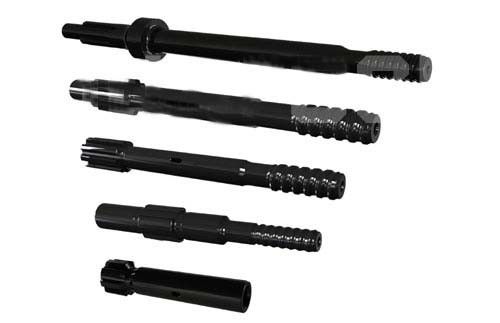

T38 T45 T51 Shank Adapter Top Hammer Drilling for Rock / Mining

T38 T45 T51 shank adaptor is used for transmitting power between drill machine and drill stem in rockl drilling & mining
T38 Tamrock HL438 / 538 / 844 shank adaptor used to fit drills / hammer for all extension tunnel drilling and mining
shank rod is used for transmitting power between drill machine and drill stems.
High Quality Shank Adaptors

Shank Adapters

ROSCHEN'S full range of shank adapters (striking bars) ensure a quality drill string interface to the most exacting industry tolerances. Built to seamlessly interface with hydraulic and pneumatic drifters and top hammers, our shank adapters come in a full range of industry-standard thread configurations. Our precision grinding process ensures straightness, and our tools are fully carburized with an advanced heat treatment.


Quick Details


Place of Origin:

ROSCHEN

Brand Name:

ROSCHEN

Model Number:

Copco 1238 R38-485

Type:

Drill Shank

Machine Type:

Drilling Equipment

Certification:

API

Material:

High Manganese Steel

Processing Type:

Forging

Use:

Ore Mining

length:

250mm to 800mm










Packaging & Delivery


Packaging Detail:

crate

Delivery Detail:

within 25 days after the order is confirmed


Specifications

1. Various shank adaptors for choice
2. Model no.: R22, R25, R38, T38, T45, T51
3. Factory suplying price
4. Aaccept small order
ROSCHEN-----Drilling Tools Expert

Shank adapter Introduction:

    In the drilling industry, there are many ways regarding the connections between different spare parts, for example, for taper drill rods and taper drill bits, taper degree is one way.
    While there is another way, that is by threads. This means different spare parts can be connected by threads. So we say shank adapters, couplings, extension rods, threaded cross bits and threaded button bits belong to threaded drilling products. Shank adapter is used for transmitting power between drill machine and drill stems.
    One end is to connect drill machine, another end is to connect drill stems, by this way, the power from drill machine is transmitted to drill bits, finally the rocks are cut .
    In the world, there are different drill machines, so different shank adapters are available, like Atlas Copco, Tamrock, Ingersoll Rand,etc. Also for the same drill machine, due to different applications, the shank adapters can be different length and different threads. Sinodrills shank adapters are compatible with most popular drill machines in the world.

1. Model no.: R22 R25 R38 T38 T45 T51
2. Diametr: 38, 38.3, 44.3, 44.7, 45, 52, 57.8 mm
3. Length: 255-880mm


Thread

Manufacturer

Drifter

Length(mm)

Weight(kg)

R32

Furukawa

HD120/200,M120

349.3

3.12

R32

Gardner-Denver

PR123,PR133

349.3

3.12

R32

Ingersoll-Rand

Evl130, VL120/140

349.3

3.12

R38

Atlas-Copco

BBE 51/52/57

448

4.9

R38

Furukawa

HD120/200,M120

349.3

3.26

R38

Ingersoll-Rand

Evl130, VL120/140

349.3

3.26

R38

Joy

VCR260/360

390.5

3.6

R38

Montabert

H100

448

4.9

R38

Tamrock

HL844

448

4.9

R38

Tamrock

L600 / 750

349.3

3.26

T38

Atlas-Copco

BBE56/57

530.4

5.5

T38

Atlas-Copco

COP1036/1038

590

5

1038ME/1238ME

T38

Furukawa

HD120/200,M120

349.3

3.4

T38

Furukawa

PD200

484

3.6

T38

Gardner-Denver

HPR1H(12 Spline)

725

6.8

T38

Gardner-Denver

PR123/133/55

349.3

3.4

T38

Ingersoll-Rand

ELV130

349.3

3.4

T38

Ingersoll-Rand

ELV130

349.3

3.4

T38

Ingersoll-Rand

HC80RP (shot)

669

7.9

T38

Ingersoll-Rand

VL120/140

349.3

3.4

T38

Joy

VCR260/360

390.5

3.6

T38

Montabert

HC80

591

6.68

T38

Montabert

HC80RP(Shot)

669

7.9

T38

Montabert

HC80RP(Long)

771

8.5

T38

Tamrock

HL438/538/844

495

3.6

T38

Tamrock

L600/750

349.3

3.4

T45

Atlas-Copco

BBE56/57/57-01

530.4

5.7

T45

Atlas-Copco

Cop1036/1038

590

5

/1238ME

T45

Furukawa

HD120/200,M120

349.3

3.6

T45

Gaedner-Denver

HPR1H 12Spline

725

5.7

T45

Gaedner-Denver

PR132

349.3

5

T45

Gaedner-Denver

PR66

558.8

3.6

T45

Ingersoll-Rand

EVL130,VL140

349.5

5

12 Spline

T45

Ingersoll-Rand

EVL130, VL120/140

558.8

3.6

T45

Ingersoll-Rand

VL671 w 3/4" tube

349.5

5.9

T45

Ingersoll-Rand

VL671 w 9/16" tube

533.4

6
