Sandstone Top Hammer Drilling Button Bit , Limestone Rock Drilling Bit

1 pc
MOQ
Sandstone Top Hammer Drilling Button Bit , Limestone Rock Drilling Bit
Features Gallery Product Description Request A Quote
Features
Specifications
High Light:

dth drilling tools

,

diamond core drilling bits

Basic Infomation
Place of Origin: Germany, China
Brand Name: ROSCHEN
Certification: ISO
Model Number: T38-76
Payment & Shipping Terms
Packaging Details: Carton, Wooden box
Supply Ability: 5000pcs
Product Description

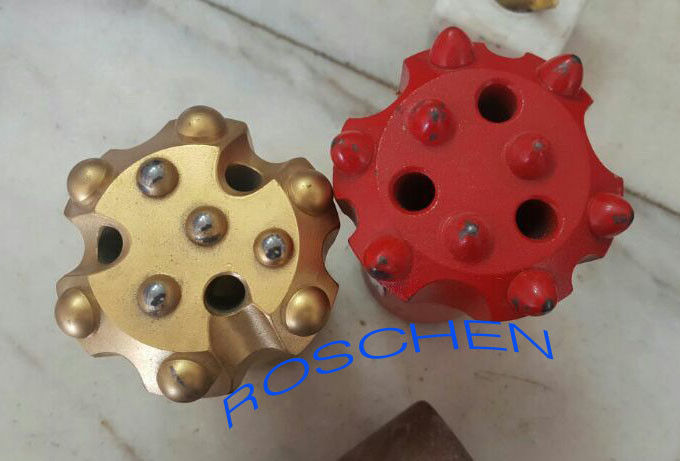

T38 76mm Wagon Drill Button Bit for Sandstone , Limestone Rock Drilling




R32 41mm, T38 76mm, T45 89mm, T51 102mm threaded drill button bits

Button bits with 6tips, 7tips, 8tips, we do them according to customers' requirement. We can manufacture the following types:


A. Taper button bit

Tapered button bit(28mm, 30mm, 32mm, 33mm, 34mm, 36mm, 38mm, 40mm, 42mm, 44mm and so on. With different degree taper)
Tapered Rod (Rod 19mm, 22mm, 25mm; Shank hex, 19mm, 22mm)
Internal Drill rods(chisel bit integral rod. 19mm, 22mm; Shank hex. 19mm, 22mm)



B. Thread Button Bit

Thread button bit (33mm, 35mm, 45mm, 51mm, 57mm, 64mm, 70mm, 76mm, 89mm, 102mm, 115mm, 127mm and so on.
R25--38mm, R25--41mm, R28--38mm, R28--41mm
R32; R32--45mm, R32--76mm, R32--89mm, R32--102mm
T38; T38--64mm, T38--76mm, T38--89mm, T38mm--102mm
T45; T45--89mm, T45--102mm
T51; T51--89mm, T51--115mm, T51--127mm



Taper Button Bit(Knock off bit)

Tapered button bit diameter: 28mm, 30mm, 32mm, 34mm, 36mm, 40mm, etc.                                              Tapered bit degree: 4.46 degree, 7 degree, 11 degree, 12 degree, etc;


Threaded button bit:

Button bit diameter: 38mm to 152mm;
Button bit thread: R22, R25, R28, R32, R35, R38, T38, T45, T51, GT60, ST58, ST68, SR32, and SR35;
Button bit face design: flat face, dome face, drop center face;
Button bits carbides style: hemi-spherical (round), Parabolic (semi-ballistic), Ballistic (conical)
As a leading manufacture, has the most comprehensive range of thread button bits with superior quality and lowest cost in tophammer drilling fields.


Features & benefits:

1. Different front designs for various rock formations
2. Longer service life
3. Improved hole straightness
4. Lowest cost per meter drilled



Size and Specification:



Thread Diameter range Skirt Design Face Design Button Design
Normal Retrac Flat Face Drop Centre Hemispherical Ballistic Conical
R22 22-30mm yes no yes no yes no no
R25 35-57mm yes no yes no yes yes no
R28 36-57mm yes no yes no yes no no
R32 41-76mm yes yes yes yes yes yes no
R35 48-51mm yes yes yes yes yes yes no
R38 57-127mm yes yes yes yes yes yes yes

T38 64-102mm yes yes yes yes yes yes yes
T45 76-127mm yes yes yes yes yes yes yes
T51 89-140mm yes yes yes yes yes yes yes
T60 102-152mm yes yes yes yes yes yes yes

ST58 89-140mm yes yes yes yes yes yes yes
GT60 93-140mm yes yes yes yes yes yes yes
ST68 102-152mm yes yes yes yes yes yes no
