Seismic Shot Hole Portable Drilling Rig Auger Drilling Hole Diameter 200mm MGY-100A

China Seismic Shot Hole Portable Drilling Rig Auger Drilling Hole Diameter 200mm MGY-100A supplier
Seismic Shot Hole Portable Drilling Rig Auger Drilling Hole Diameter 200mm MGY-100A supplier Seismic Shot Hole Portable Drilling Rig Auger Drilling Hole Diameter 200mm MGY-100A supplier

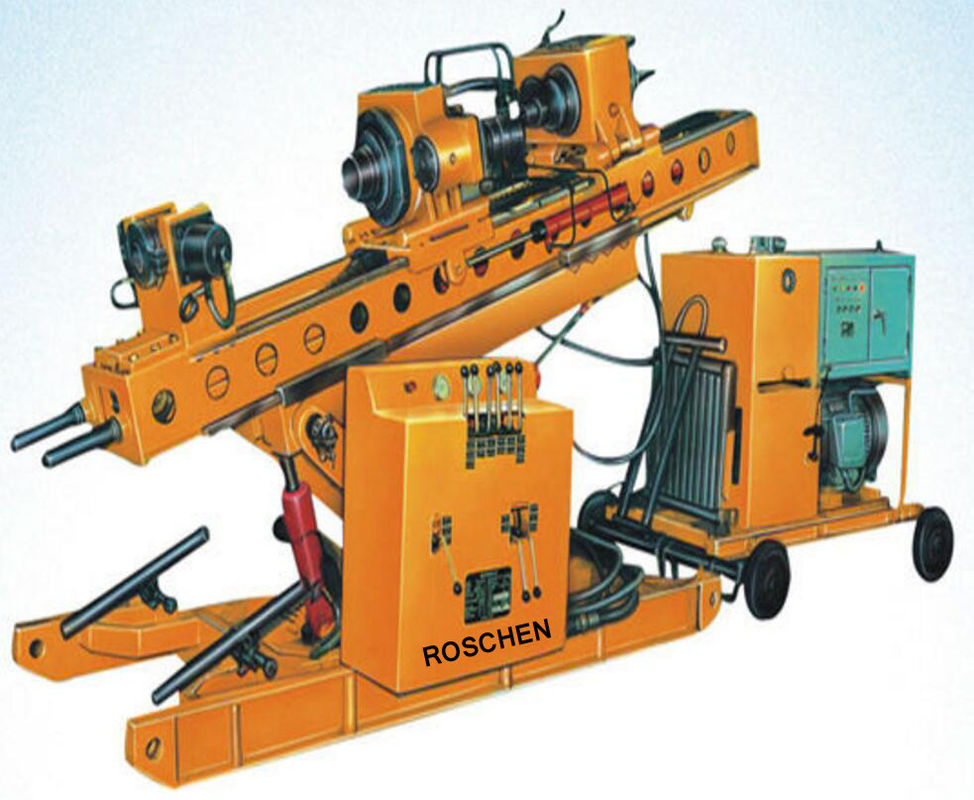

Large Image :  Seismic Shot Hole Portable Drilling Rig Auger Drilling Hole Diameter 200mm MGY-100A

Product Details:

Place of Origin: China
Brand Name: ROSCHEN
Certification: ISO
Model Number: MGY-100A

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Supply Ability: 100 sets
Contact Now
Detailed Product Description
Voltage: 380 V Power: 37Kw
Weight: 1800kgs Drill Method: Coring Down-hole Hammer
Max Feed Stroke: 2800 Mm Mount Type: Plate Mounted, Drill Body Seperate
Drilling Angle: Elevation20°,Depression Angle100°

MGY-100A Seismic shot hole portable drilling rig drilling hole diameter 200mm






Packaging Details:

Drill machine main body pack in plywood cases and rod fixed with iron frame
MGY-100A Seismic shot hole portable drilling rig drilling hole dia.200mm



Delivery Detail:
7 days after getting deposit if no stock as soon as possible.




MGY-100A Seismic shot hole portable drilling rig

1. Hydraulic top head
2. Diesel or motor drill machine
3. Pipe hole drilling


MGY-100A Seismic shot hole portable drilling rig drilling hole dia.200mm



Specifications:

MGY-100A Seismic shot hole portable drilling rig drilling hole dia.200mm
1. Important project of "the Ninth five" of the state.
2. Hydraulic feed drill rig,light weight.
3. Engineering geological survey, hydrology, water wells, sky buildings, dams, harbors bridge, oil exploration, etc.
4. With diesel engine or electric motor.
5. Jet-grouting for soft foundation.
6. MGY-100A Portable Drilling Machines With Accessories For Seismic Drilling.


Applications:

MGY-100A Seismic shot hole portable drilling rig drilling hole dia.200mm is an important project of "the Ninth five" of the state. Mainly used in drilling soil and rock anchoring hole for prevention and treatment of geology disaster screen injection for tunnel, also suitable for supporting in deep foundation pit of hydroelectric powerstation, communication, energy capital construction, mini-grouting pile hole, hydrography well and high pressure jet-grouting.



Features:

1. Hydraulic top head, hydraulic powerstation separated from drill body; lighten drilling rig body, and with diesel or motor, meeting the needs of various users.
2. It is the first time that the rig user coring down-hole hammer, fully forward-circulation and partial reverse-circulation drilling methods domestically.
3. Double top-drive head A. B. a variety combination can be made, to meet many drilling methods.
4. Large powered, top-drive head has big torque and pull force, wide rotary speed range.
5. Holder and unscrew device, working efficiently, labor saving.
6. 2-tier guiding rail, easy to find hole position.




Technical Specification:


Hole dia(mm) Φ110-Φ200 Drilling depth(m) 100-60
Hydraulic power pack type Variable(Electric motor)
Power model Y200L2-2 CC490Q
Power and ratings 37Kw/2950r/min 36Kw/2800r/min
Hydraulic system pressure(Mpa) 20
A-top drill head speeds(r/min) series 1 0-100 0-95
series 2 0-30 0-29
A-top drill head torque(Nm) series 1 1600
series 2 5000
B-top drill head speed(r/min) 0 10
B-top drill head torque(Nm) 6400
lift/feed speeds (m/s) 0-0.16/0-0.21
Max pull force/Max push force(N) 80000/57000
Max feed stroke (mm) 2000
Drilling angle(°) Elevation20°,Depression angle100°
mast Raised height horizontally(mm) 300
Drill body weight (kg) 1800(approximately)
Powerpack weight(kg) 700(approximately)
Mount type Plate mounted,drill body separated from power




Products ability:

MGY-100A Seismic shot hole portable drilling rig drilling hole dia.200mm

1. Our factory occupies more than 130,000 square meters.
2. More than 1000 workers and staff(including 156 engineers and technicans in all kinds)
3. We have manufatured more than 26,000 sets of strongly recommended diamond core drilling rigs

Drill rig type: core drilling machine, anchor drilling rig, engineering drill rig, tunnel drill rig, mini water well drill rig, hydraulic components,etc.
