Surface Coring Drilling Rig Machine for Water Well Geological Exploration Core Drilling

1 set
Surface Coring Drilling Rig Machine for Water Well Geological Exploration Core Drilling
Features Gallery Product Description Request A Quote
Type: Drilling Rig
Name: Core Drill Rig
Use: Geological Exploration Core Drilling
Usage: Water Well Drilling
Power: Cummins Diesel Engine Is Available
Functions: Wireline Core Drilling
Drilling: Exploration Core Drilling
Drills: Wireline Core Drilling
Mining: Australia Mining
Exploration: Australia Exploration
Model No: Mining Exploration Core Drilling
Applications: Copper Mining Drilling
High Light:

geothermal drilling rigs


borehole drilling machine

Basic Infomation
Place of Origin: CHINA
Brand Name: ROSCHEN
Certification: ISO
Model Number: RCD-200
Payment & Shipping Terms
Packaging Details: Poly wood box
Supply Ability: 1000 sets
Product Description

Surface Coring Rigs for Water Well Geological Exploration Core Drilling


Surface Coring Rigs

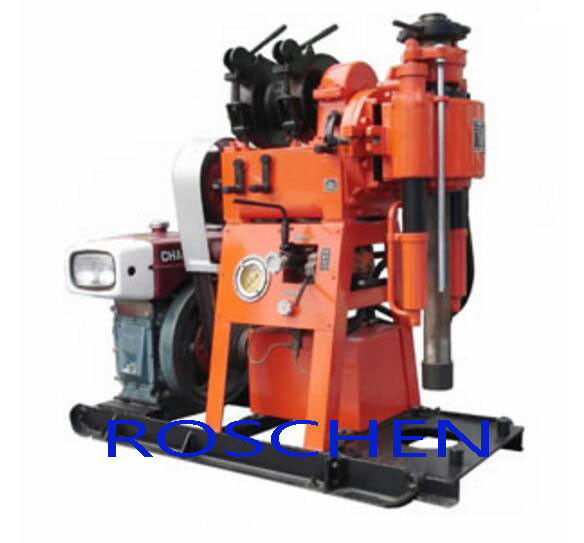

Model: RCD-200 Coring Rig

RCD-200 surface coring machine is a new type of shallow hole drill which is mainly designed for engineering geological exploration. It can also be used to geological core drilling and small-scale water well drilling.


(1) This core drilling machine can be utilized to many fields, including highway, railway, power plant, bridge, tunnel as well as industrial and civil engineering geological exploration and geological core drilling or small-scale water well drilling.
(2) Different drilling technologies are available, like alloy, diamond, steel and/or grain based on various geological conditions.
(3) The drilling condition can be 2 to 9 sand clay or bedding course.



(1) This surface drill core is a device with hydraulic pressure automatic feeding system and mechanical transmission system, ensuring high drilling efficiency and reducing labor intensity.
(2) Large diameter hole of spindle and excellent adaptability in drilling technology.
(3) Large drilling torque, high strength and strong capacity of this surface coring machine.
(4) A wide range of speed and a broad variety of applications are available.
(5) Equipped with ball holder, this core drilling machine realizes rod lifting without stopping the machine, ensuring its safety and reliability.
(6) Drill and water pump are installed on different frames. They can be driven by the same power or separate power for convenient disassembly or shipment.




Model: RCD-200 Core Drilling Rig
Drilling Capacity (Ø42 ROD ) (m) 200
Kelly Pipe (Hexagon) (mm) 51 x 46
Rotational Speed of Vertical Spindle (r/min) 58, 130, 268, 415, 598
Max. Torque of Vertical Spindle (N m) 1275
Max. Hoist Capacity (KN) 30
Max. Feeding Pressure (MPa) 23
Drilling Angle 360o
Max. Drilling Diameter (mm) Ø42AW Pipe: 130 Ø 50BW Pipe: 150
Single-rope Max. Hoist Capacity (KN) 12.5
Single-rope Hoist Speed (m/s) 0.31, 0.70, 1.45, 2.24, 3.23
Engine (Diesel Engine) Model S1100N
Diesel Engine Power (kW) 8.8
Engine Rotational Speed (r/min) 1800
Dimension (L x W x H) (mm) 1310 x 700 x 1360
Weight (without power) (kgs) 380





Q: Are you a manufacturer or trading company?
A: We are a specialized manufacturer.

Q: What are your main products, and used for?
A: Our products include core bit, PDC bit, reaming shell, core barrel, casing, drill rod, SPT equipment, Shelby sampler, drill rig and other drilling parts.
They are used for mineral exploration, geological drilling, geotechnical engineering and soil sampling.

Q: How about the delivery terms?
1. Payment: T/T, L/C, Western Union, Paypal, 30% deposit in advance and rest before delivery.
2. Min. order quantity: 1 piece.
3. Transportation: By DHL/TNT/Fedex express, air, sea, train.

Q: How about discount?
A: Price is based on products and order quantity.

Q: Do you accept sample order?
A: Yes sure, please contact us for details.

Q: How about your after-sales service?
A: As a manufacturer, we offer promt technology support for all problems and questions. Besides, we accept goods return or replace for quality problem.

Q: How does your company control the quality?
A: Quality first. In order to guarantee high quality for our products, Roschen always makes a serious inspection for all products and raw materials in strict procedure. We have obtained certificate of ISO9001:2000 in 2004.
