Core Drilling Rig Machine for geological core drilling and small scale water well drilling

1 Sets
Core Drilling Rig Machine for geological core drilling and small scale water well drilling
Features Gallery Product Description Request A Quote
Type: Geological Core Drilling
Use: Water Well Drilling
Usage: Engineering Geological Exploration
Water Pump Pressure: 0.7-2 MPa
Drill Rods: 50mm Drill Rods, BQ Drill Rods
Functions: Tunel Drilling
Conditions: Diamond Core Drilling System
Name: Wireline Coring System
High Light:

geothermal drilling rigs


borehole drilling machine

Basic Infomation
Place of Origin: CHINA
Brand Name: ROSCHEN
Certification: ISO
Model Number: RS-150L
Payment & Shipping Terms
Packaging Details: Steel Bundle
Supply Ability: 1000 sets
Product Description

Core Drilling Rig Design for geological core drilling and small scale water well drilling


Core Drilling Rig Design for geological core drilling and small scale water well drilling

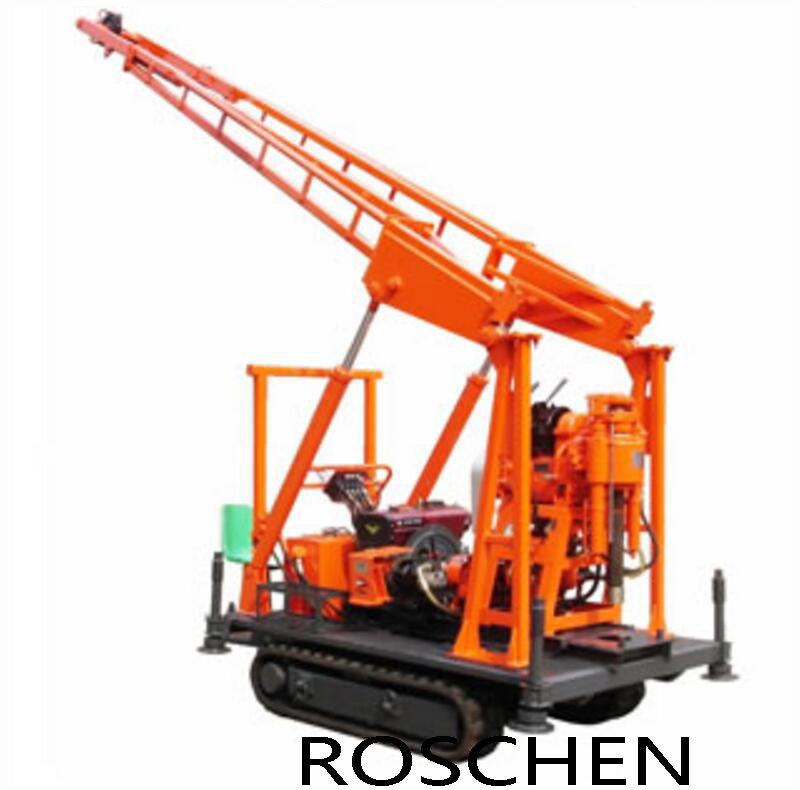

Model: RS-150L

RS-150L surface drill rig is a new kind of shallow hole drill which is mainly utilized to engineering geological exploration. It is also designed for geological core drilling and small scale water well drilling.



(1) This core drill can be utilized to many fields, including highway, railway, power plant, bridge, tunnel as well as industrial and civil engineering geological exploration and geological core drilling or small scale water well drilling.
(2) Different drilling technologies are available, like alloy, diamond, steel and/or grain based on various geological conditions.
(3) The drilling condition can be 2 to 9 sand clay or bedding course.



(1) This core drilling machine is a device with hydraulic pressure automatic feeding system and mechanical transmission system, ensuring high drilling efficiency and reducing labor intensity.
(2) Large diameter hole of spindle and excellent adaptability in drilling technology.
(3) Large drilling torque and strong capacity of this surface drill rig.
(4) A wide range of speed and a broad variety of applications are available.
(5) Equipped with ball holder, this core drill realizes rod lifting without stopping the machine, ensuring its safety and reliability.
(6) Drill and water pump are installed on different frames. They can be driven by the same power or separate power for convenient disassembly or shipment.



Spindle Rotational Speed (r/min) 99, 222, 456, 707, 1019
Stroke (mm) 450
Max. Input Torque (N m) 750
Dia. (mm) 57
Max. Hoist Capacity (KN) 30
Max. Feeding Force (KN) 23
Winch Single-rope Max. Hoist Capacity (KN) 11
Hoist Speed (m/s) 0.41, 0.92, 1.90, 2.93, 4.23
Wire Rope Dia. (mm) 10
Wire Rope Capacity (m) 30
Drum Dia. (mm) 240
Brake Band (mm) 50
Oil Pump Model CB2-D316-CLZ CBT-F420-AFH
Displacement (ml/min) 8 20
Rated Pressure (MPa) 10 20
Rated Speed (r/min) 1500 2000
Diesel Engine Model S1110
12-hour Continued Power (kW) 13
Rated Rotational Speed (r/min) 2200
Water Pump Displacement (l/min) 80
Water Pump Pressure (MPa) 0.7
Tower (m) 7
Tower Loading Capacity (KN) 30
Track Loading Capacity (T) 3
Walking Speed (km/h) 1.5
Angle of Climb < 20°
Weight (kgs) 2650
Dimension (L x W x H) (mm) 5450 × 1712 × 2223



Q: Are you a manufacturer or trading company?
A: We are a specialized manufacturer.

Q: What are your main products, and used for?
A: Our products include core bit, PDC bit, reaming shell, core barrel, casing, drill rod, SPT equipment, Shelby sampler, drill rig and other drilling parts.
They are used for mineral exploration, geological drilling, geotechnical engineering and soil sampling.

Q: How about the delivery terms?
1. Payment: T/T, L/C, Western Union, Paypal, 30% deposit in advance and rest before delivery.
2. Min. order quantity: 1 piece.
3. Transportation: By DHL/TNT/Fedex express, air, sea, train.

Q: How about discount?
A: Price is based on products and order quantity.

Q: Do you accept sample order?
A: Yes sure, please contact us for details.

Q: How about your after-sales service?
A: As a manufacturer, we offer promt technology support for all problems and questions. Besides, we accept goods return or replace for quality problem.

Q: How does your company control the quality?
A: Quality first. In order to guarantee high quality for our products, Roschen always makes a serious inspection for all products and raw materials in strict procedure. We have obtained certificate of ISO9001:2000 in 2004.
