Drilling Rig Machine
>
|
| Place of Origin | CHINA |
| Brand Name | ROSCHEN |
| Certification | ISO |
| Model Number | RS-110 |
Two Arm Drilling Jumbo HZS Series Concrete Mixing Plant Used in Various Tunneling and Lining

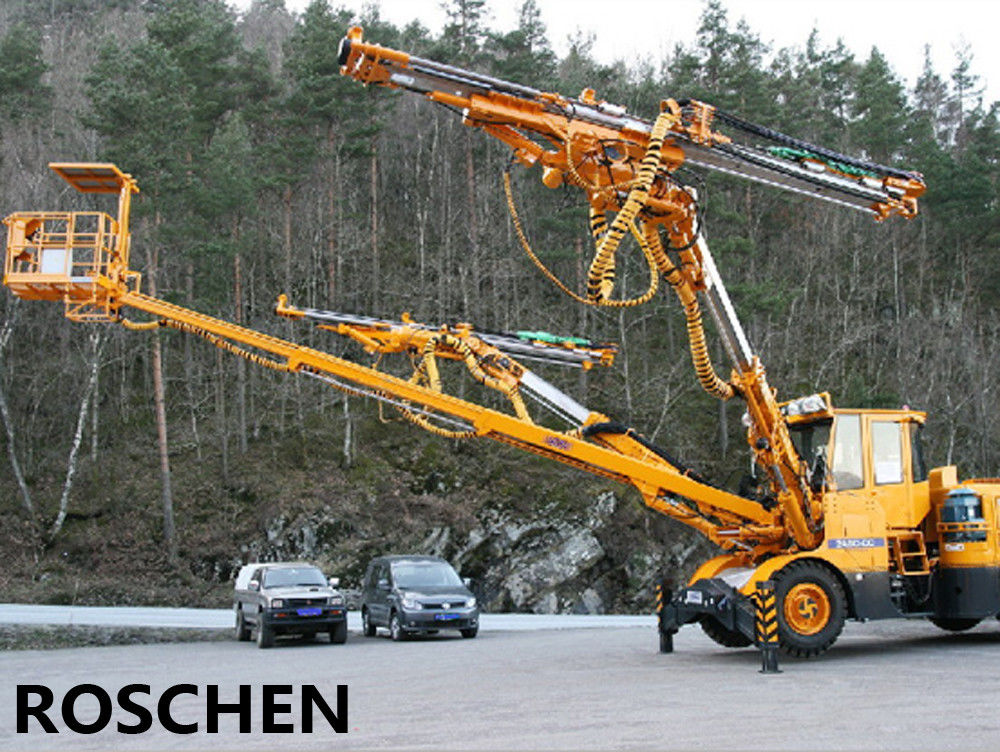

Model: RS-110 Two-arm drilling jumbo
Two-arm drilling jumbo
HZS Series Concrete Mixing Plant
Features:
It can be divided into two types: computer-controlled and hydraulic-controlled, it has the function of walking, drilling and explosive filling. It has the advantages of convenience, simple operation, fast drilling, full function, high safety and low cost, with the combination of our shotcrete, it can be widely used in various tunneling & lining works of national defense, metallurgy, railway and highway.
Technical Parameters:
| Item | Unit | Parameters | |
| ZYS82/ZY82 | |||
| Drilling machine Qty. | set | 2 | |
| Max. impulsive power | kW | 32 | |
| Air compressed machine | Rated power | kW | 9 |
| Drilling arm | |||
| Max. height | mm | 8000 | |
| Max. width | mm | 13200 | |
| Thruster | |||
| Total length | mm | 6125 | |
| Max. drilling depth | mm | 4000 | |
| Operation platform | |||
| Working load | kg | 500 | |
| Chassis | |||
| Generator | Power | kW | 103 |
| Max. speed | Km/h | 15 | |
| Complete machine dimension | mm | 14800x2700x3250 | |
