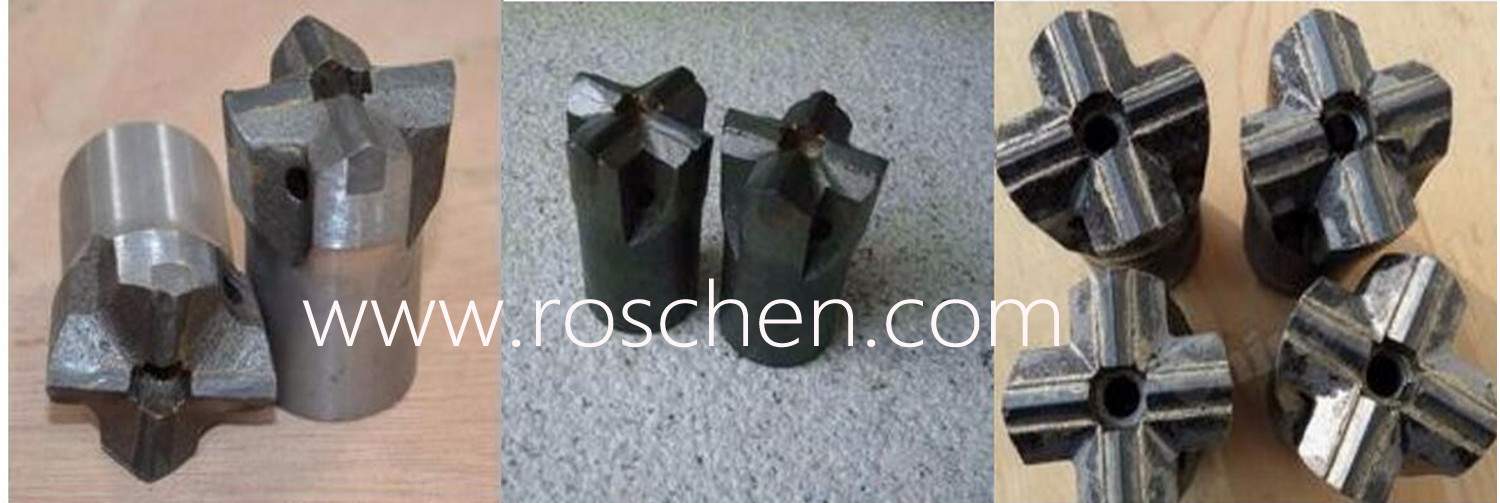

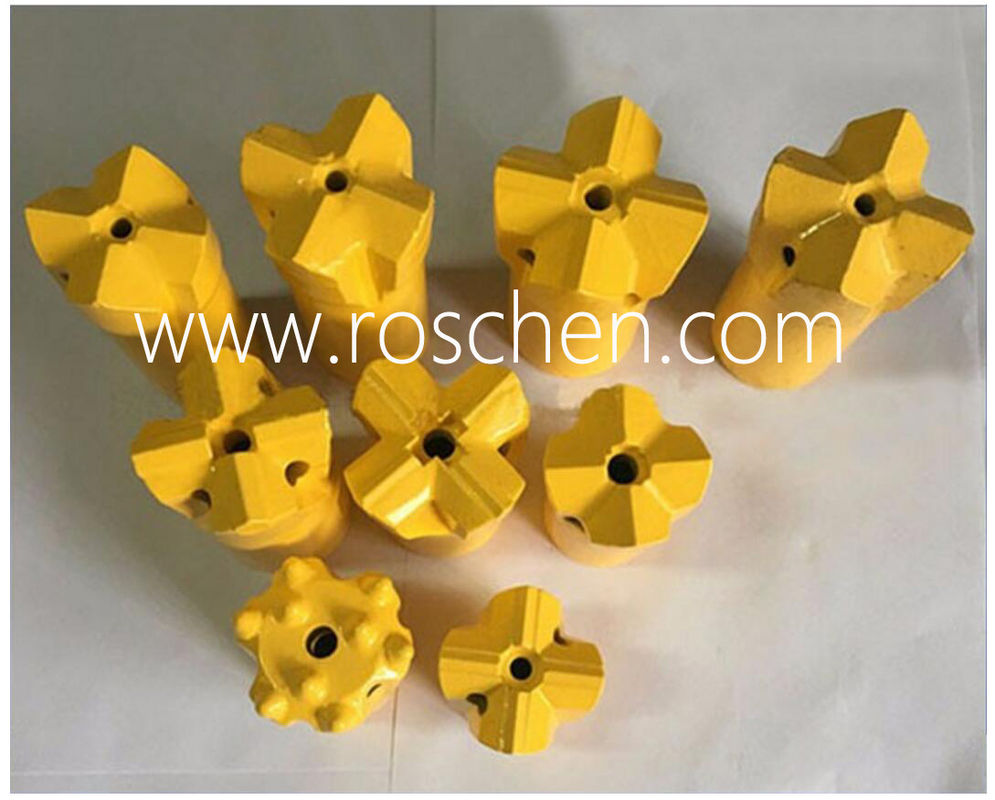

Furnace Blast Hole Tapping Carbide Cross Bits with Tungsten Carbide Tips
  • Furnace Blast Hole Tapping Carbide Cross Bits with Tungsten Carbide Tips
  • Furnace Blast Hole Tapping Carbide Cross Bits with Tungsten Carbide Tips
  • Furnace Blast Hole Tapping Carbide Cross Bits with Tungsten Carbide Tips

Furnace Blast Hole Tapping Carbide Cross Bits with Tungsten Carbide Tips

Place of Origin CHINA
Brand Name ROSCHEN
Certification ISO
Model Number 20 22 24 25 26 27 28 29 30 32 35 38 39 40 42 43 45 48 50
Product Details
Type:
Cross Bits
Use:
Blast Hole Drilling
Materials:
Tungsten Carbide Tips
Model:
Drill Bits
Usage:
Top Hammer Drilling
Drilling:
Bench Drilling
Name:
Top Hammer Drilling Tools
Category:
Drifting And Tunneling Drilling
Bits Type:
R22 R 25 R28 R32 Thread Button Bits
Processing:
Forging
High Light:

dth drilling tools

,

diamond core drilling bits

Payment & Shipping Terms
Minimum Order Quantity
1-5 pcs
Price
Negotiate
Packaging Details
Carton box
Supply Ability
1000000 pcs
Product Description

Furnace Blast Hole Tapping Carbide Cross Bits


Furnace Blast Hole Tapping Carbide Cross Bits For hardest rock formation Top Hammer Drilling


Our cross bits diameters are from 20mm to 127mm, and different type are available, like R22,

R25, R32, R38, T38, T45, T51, ST58, ST68,GT60, etc..


Feature:


1. Excellent drilling penetration

2. Used in very hard or hardest rock formation

3. Adequate for various construction conditions

4. Strong corrosion resistance


Application:
1 The cross bit is suitable for digging of very hard rock formation, hard formation and crack-grown formation.
2 All cross bits have to be reground at regular intervals to crush rock efficiently.
3 We choose different material and size for the cross bits in order to adapt the different rock formations and working conditions.


Technical parameter:


H25
Diameter button(mm) flushing holes
mm inch length*width*height side front
35 1 3/8" 13*8*12 4 1
38 1 1/2" 14*8*12 4 1
41 1 21/32" 15*8*12 4 1
45 1 49/64" 17*8*12 4 1
48 1 57/64" 17*8*14 4 1
51 2" 19*10*16 4 1
57 2 1/4" 22*10*16 4 1
64 1 33/64" 24*10*16 4 1
76 3" 29*12*20 4 1



R25/R28
Diameter   Button(mm) Tthread
mm inch length*width*height side
35 1 3/8" 14*8 R25
38 1 1/2" 14*8 R25
41 1 5/8" 14*8 R25
43 1 11/16" 14*8 R25
38 1 1/2" 14*8 R28
43 1 11/16" 14*8 R28
45 2 3/4" 14*8 R28




R32
Diameter Button(mm) Thread
mm inch length*width*height side
45 1 3/4" 16*10 R32
48 1 7/8" 16*10 R32
51 2 16*10 R32
57 2 1/4" 16*10 R32
64 2 1/2" 18*13 R32
76 3 18*13 R32



Roschen are a leading manufacturer of drilling tools, like DTH hammers and bits, DTH drill pipes, RC hammers and bits, top hammer button bits, coupling, cross bits, drill rods, and rock drilling equipment, tools, accessories, etc.
