Geotechnical Drilling Equipment Drilling Rig Machine for Drilling Water Well / Construction Site
1 Sets
MOQ
Negotiate
Price
Geotechnical Drilling Equipment Drilling Rig Machine for Drilling Water Well / Construction Site
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: CHINA
Brand Name: ROSCHEN
Certification: ISO
Model Number: RS-100
High Light:

geothermal drilling rigs

,

borehole drilling machine

Payment & Shipping Terms
Packaging Details: Wooden Box
Supply Ability: 1000 sets
Specifications
Model: Atlas Copco Drill Rig
Name: Atlas Copco DD210L UNDERGROUND DRILL RIG
Type: UNDERGROUND DRILL RIG
Drilling: Underground Drilling
Use: Foundation Drilling
Function: Crawler Drill Rig
Machine: Hydraulic Drilling Machine
Equipment: High Performance Drilling System
Product Description

Geotechnical Drilling Equipment Drilling Rig

Geotechnical Drilling Equipment Drilling Rig for Drilling Water Well, Construction Site, Dam Drilling

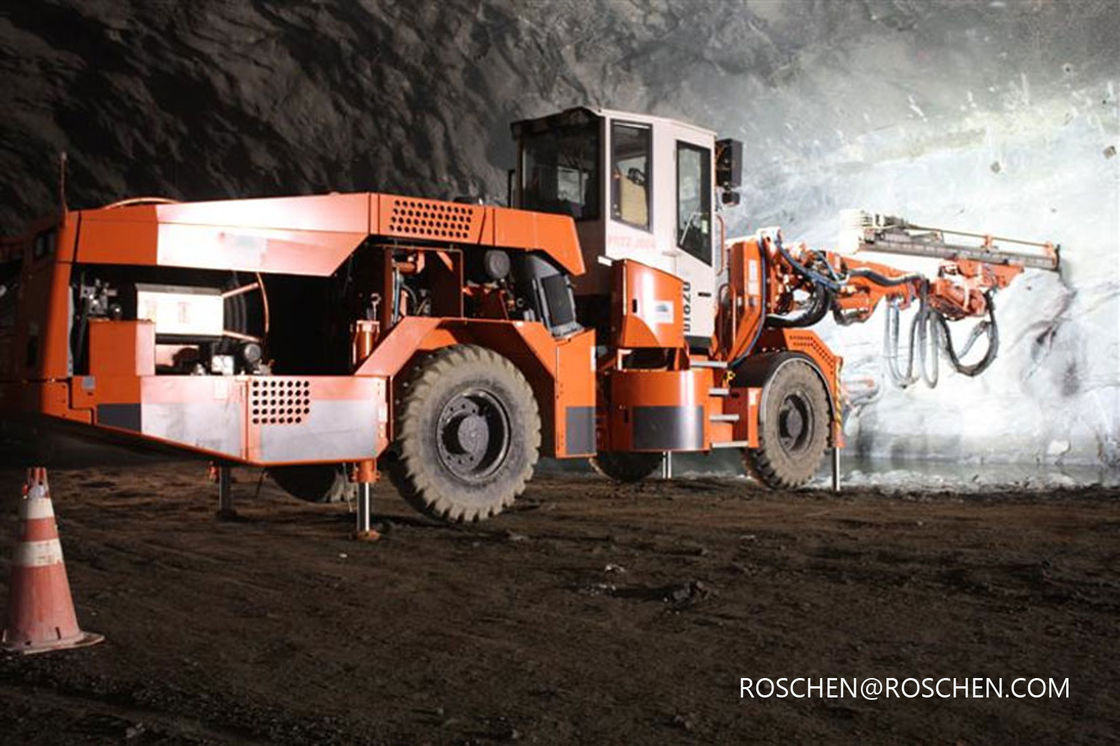

Geotechnical Drilling Equipment Atlas Copco DD210L Underground Drill Rig Used for Underground Drilling


Atlas Copco DD210L is a low profile single boom electro hydraulic drilling machine designed to work in excavations with headroom as low as 1.7 m.

The robust universal boom has a large optimum shaped coverage, 360° rotation and full automatic parallelism for fast and easy face drilling. The boom can also be used for crosscutting, the hose layout is specifically designed to maximize protection in low headings. The exceptional «V» shape layout is designed for good visibility and balance, this and the powerful four-wheeldrive articulated carrier ensure fast and safe maneuvering even in low headroom conditions.


The high performance drilling system allows high drilling performance with good drill steel economy and high machine reliability.


The operator environment and added automatic functions allow the operator to concentrate on safe, fast and accurate drilling.


All the service points are well protected but easy to access.



Technical Parameters Specifications:


Technical Parameters
Description Technical Data
Hole diameter (mm) Ø150 - 450mm
Hole Depth (M) 0-200
Rod diameter (mm) Ø73, Ø89, Ø102, Ø114
Hole Angle (˚) 0 - 100
Maximum lifting height level(m) 3.5
Maximum track height (m) 0.7
Output Rotary speed of power head(r/min) 10/20/30/35/40/60/65/70/85/130/170
Output Torque of power head(N.M) 7500
Stroke of power head(mm) 3400
Stroke of Slide Frame(mm) 1500
Lifting force of power head(kN) 70
Lifting speed of power head(m/min) 0 ~ 5 adjustable /7/23/30
Feeding force of power head(kN) 36
Feeding Speed of power head(m/min) 0 ~ 10 adjustable/14/46/59
Input power (electromotor)(kW) 55+18.5+2.2
Dimension (LxWxH)(mm) 5400x2100x2000
Weight (kg) 6500



Roschen Mining reserves the right to make changes to the information on this data sheet without prior notification to users. Please contact a Roschen representative for clarification on specifications and options.
