Geotechnical Drilling Equipment Atlas Copco Underground Drill Rig Used for Underground Drilling

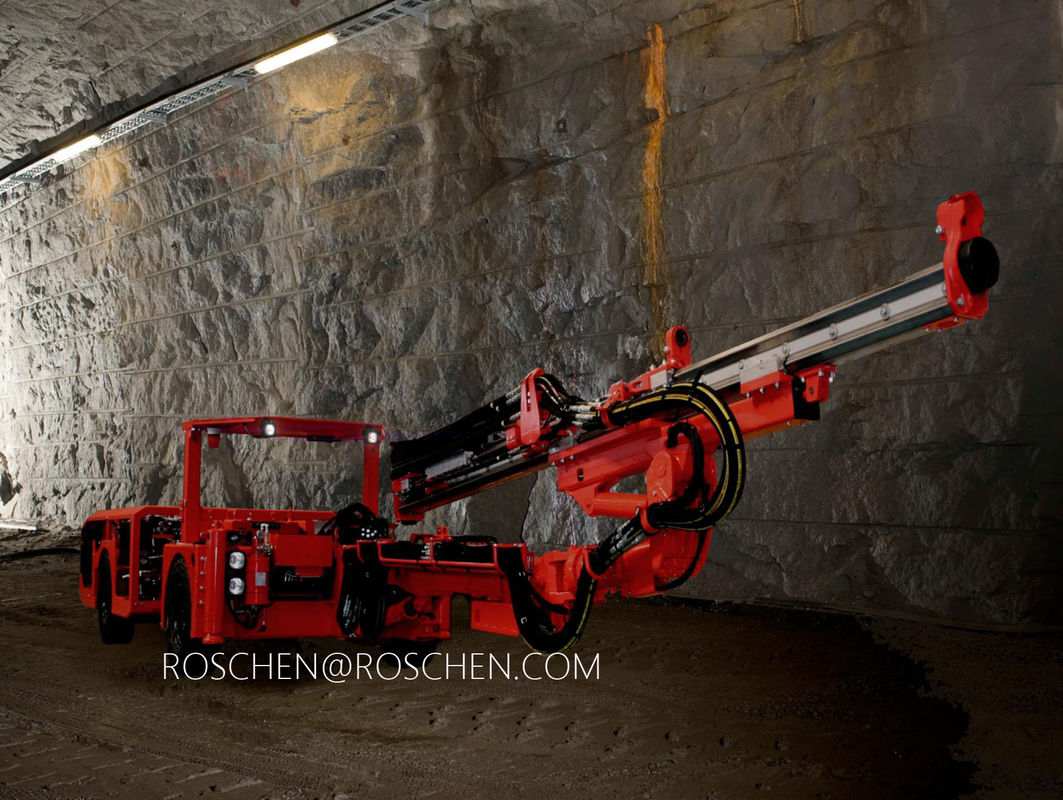

Roschen Drill Rig is a low profile single boom electro hydraulic drilling machine designed to work in excavations with headroom as low as 1.7 m.
The robust universal boom has a large optimum shaped coverage, 360° rotation and full automatic parallelism for fast and easy face drilling. The boom can also be used for crosscutting, the hose layout is specifically designed to maximize protection in low headings. The exceptional «V» shape layout is designed for good visibility and balance, this and the powerful four-wheeldrive articulated carrier ensure fast and safe maneuvering even in low headroom conditions.
The high performance drilling system allows high drilling performance with good drill steel economy and high machine reliability.
The operator environment and added automatic functions allow the operator to concentrate on safe, fast and accurate drilling.
All the service points are well protected but easy to access.
Technical Parameters:
| HYDRAULIC ROCK DRILL | ||
| Rock drill | HLX5 | |
| Percussion Power | 20 kW | |
| Percussion Pressure | Max. 220 bar | |
| Percussion rate | 67 Hz | |
| Rotation Speed | Max. 250 rpm (with OMS80) | |
| Rotation torque | 400 Nm (with OMS80) | |
| Hole size (drifting | 43 - 64 mm | 1.7 - 2.5 in |
| Hole size (cut hole) | 76 -127 mm | 2.9 - 5 in |
| Recommended Rod | T38 - R32 | |
| T38 - alpha 330 | ||
| T38 - R35 | ||
| Shank adapter | T38 (male) | |
| Weight | 210 kg | 462.9 lb |
| Length | 955 mm | 37.6 in |
| Profile height | 87 mm | 3.4 in |
| Shank lubrication device | Air / oil mist, KVL10-1 | |
| Shank lubrication compressor | CT10, 1m3/min (7bar) | |
| Air consumption | 250 - 350 l/min | |
| Oil consumption | 180 - 250 g/h | |
| BOOM | ||
| Boom | B26XL-F | |
| Boom* | B26S-NV, B26XL-NV | |
| Parallel coverage | 35 m2 | 376,74 ft2 |
| Parallelism | Automatic hydraulic | |
| Boom extension | 1700 mm | 66.92 in |
| Boom weight, net | 2100 kg | 4630 lb |
| Roll-over angle | 360º | |
| FEED | ||
| Feed | TF500-12 | |
| Feed Force | Max. 25 kN | |
| Feed Extension | 1600 mm | 5.24 ft |
| TF Feed lengths* | 4256, 4864 mm | 14, 16 ft |
| Telescopic feed* | TFX6/12. 8/14 | |
| FEED DIMENSIONS | ||||
| Feed TF500 | Total Length | Hole Length | Rod Length | Net Weight |
| 12 ft | 5270 mm | 3440 mm | 3700 mm | 500 kg |
| 207.4 in | 135.4 in | 145.6 in | 1102 lb | |
| 14 ft | 5880 mm | 4050 mm | 4305 mm | 530 kg |
| 231.4 in | 159.4 in | 169.4 in | 1168 lb | |
| 16 ft | 6490 mm | 4660 mm | 4915 mm | 560 kg |
| 255.5 in | 183.4 in | 193.5 in | 1234 lb | |
