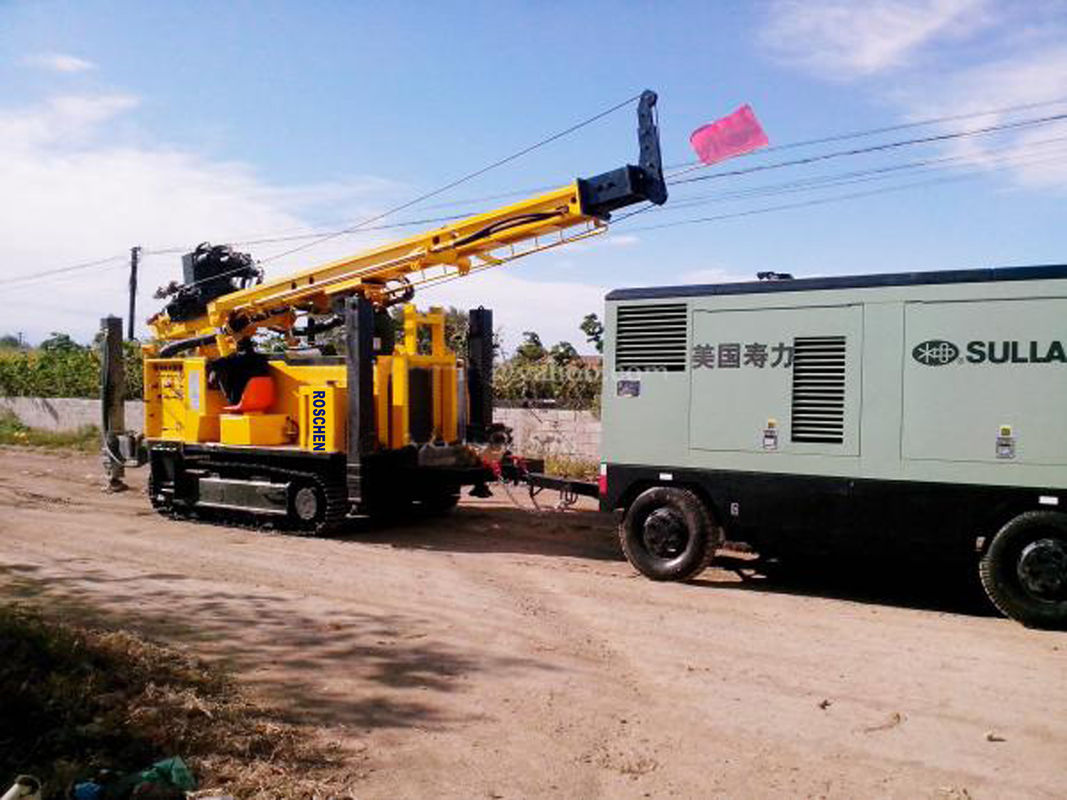

Reverse Circulation Rotary Drilling Rig Machine With CUMMINS Engine 0 - 80 Rpm Rotation Speed

Reverse Circulation Rotary Drilling Rig Machine With CUMMINS Engine 0 - 80 Rpm Rotation Speed
Reverse Circulation Rotary Drilling Rig Machine With CUMMINS Engine 0 - 80 Rpm Rotation Speed Reverse Circulation Rotary Drilling Rig Machine With CUMMINS Engine 0 - 80 Rpm Rotation Speed Reverse Circulation Rotary Drilling Rig Machine With CUMMINS Engine 0 - 80 Rpm Rotation Speed

Large Image :  Reverse Circulation Rotary Drilling Rig Machine With CUMMINS Engine 0 - 80 Rpm Rotation Speed

Product Details:

Place of Origin: Germany
Brand Name: ROSCHEN
Certification: ISO,CE
Model Number: ROS-RC-350

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiate
Packaging Details: Wooden box
Supply Ability: 600 sets
Detailed Product Description
Name: Drilling Rig Machine Drilling Tools: Quality Rock Drilling Tools
Sale: China Drilling Rigs For Sale Origin: China Drilling Rig Machine
Type: China Rotary Drilling Rig Item: China Land Drilling Rig
Item No: China Oil Drilling Rig Sale: Drilling Rig Parts Sale
Supplier: China Cable Tool Drilling Supplier
High Light:

80Rpm rock drilling equipment

,

Reverse Circulation Rotary Drilling Rig

,

Drilling Rig Machine With CUMMINS Engine

Reverse circulation Rotary Drilling Rig with CUMMINS Engine 0 - 80 rpm Rotation Speed


Reverse circulation(RC) drilling rig / rc drilling rig mining sample collection



Model Number: ROS-RC-350 Warranty: 1 Year
After-sales Service: 7X24hours Available Drilling Diameter: 105-350mm
Drilling Depth: 300m Drill Pipe Length: 3m
Rotary Torque: 8500N.m Usage: RC Reverse Circulation Drilling
Type: Rotary Drilling Rig Drilling Methold: RC Drilling,DTH Drilling
Winch: Hydraulic Feed Force: 12T
Engine Brand: Cummins Engine Power: 132KW
Gradeability: 21° Working Air Pressure: 1.2-3.5MPa
Air Consumption: 16-40m3/min Engine: CUMMINS
RC Drill Pipe Diameter: 102/114/127mm Rotation Speed: 0-80rpm




Reverse circulation Rotary Drilling Rig with CUMMINS Engine 0 - 80 rpm Rotation Speed

Reverse circulation(RC) drilling rig / rc drilling rig mining sample collection



Model: ROS-RC-350 Reverse Circulation Drilling Rig


Introduction:

ROS-RC-350 reverse circulation drilling rig is a new multi-purpose, high-efficiency, environmental protection, multi-track-type rig, which uses the latest foreign gas lift reverse circulation drilling technology, rock dust can be effectively collected through a dust collector to avoid environmental pollution.You can also collect slagging cyclone separator can be used in geological prospecting department of sampling analysis.It is a geological exploration drilling, drilling wells, monitoring wells, ground source heat pump air-conditioning and other deep hole of choice for equipment.

The drilling rig can be used in a variety of compressed air on the ground hole reverse circulation drilling. The lifting system,guide compensation, drill pipe loading and unloading, rotation and feed, legs, winch, walking and other system to achieve all of the hydraulic system to significantly reduce the labor intensity and improve the efficiency and quality of construction.

Characteristics:

1. Diesel engine mounted hydraulic system,all the system include the walking,rotation,feed,lifting,Leg,lifting, compensation system,rod change is hydraulic.
2: Reverse circulation system working together with DTH technology, air compressor provide pressed air for impact and dust collect.
3. During working,use the reverse circulation hammer,double tube,pressed air enter between two tube and dust out from the inner tube.
4. Also it’s available to positive circulation use normal drilling tool.
5. The working system composed of feed system,guide(mast),rotary head, compensation system, centralizer,rod exchange System, winding and so on.
6. Axes pressure,feed speed,rotary speed is adjustable.
7. The walking system is a self-walking system, convenient for moving, which could install four hydraulic leg,when load on truck,it doesn’t need hiking up,it can load on truck directly.
8. Four hydraulic leg use for keep the balance of the drilling during working.



Technical Parameters
Model ROS-RC-350 reverse circulation drilling rig
1 Geology drilled   All kinds
2 Drilling Type   DTH & RC
3 Drill system and operation   Hydraulic
4 Max.Hole Diameter mm Φ105—Φ350
5 Max.Hole Depth m 300
6 Rotation Torque N.M 8500
7 Rotation Speed(Forward rotation) rpm 0-40 1st Gear
0-80 2nd Ger
8 Rotation Speed(Revise rotation) rpm 40 1st Gear
80 2nd Ger
9 DTH Drill pipe diameter mm 76/89/102/114/127
10 RC Drill pipe diameter mm 102/114/127
11 Drill pipe length mm 3000
12 Max. Feed Speed M/min 5 ~ 30
13 Max. Lifting Speed M/min 5 ~ 18
14 Feed Stroke mm 3400
15 Max. Lifting force T 12
16 Lifting force of Main winch(Optional) T 4
17 Lifting force of tool winch T 1.5
18 Lifting height of tool winch m 7.5
19 Diesel Engine type CUMMINS
20 Rated Horse power Kw 132
21 Electrical System Volt 24
22 Type   Open
23 Diameter mm 300
24 Clamping Force KN 157
25 Clamping Rod Diameter mm 76-219
26 Net Weight T 13
27 Shipping Length mm 7550
28 Shipping Width mm 2260
29 Shipping Height mm 2700
30 Hydraulic Leg Feed Stroke mm 600
31 Gradeability ° 21
32 Ground Clearance mm 300
33 Volume of Flow mm 200
