Hydraulic Photovoltaic Pile Hole Drilling Rig , Crawler Mounted Pile Hole Drilling Equipment
1~5 piece
MOQ
Negotiate
Price
Hydraulic Photovoltaic Pile Hole Drilling Rig , Crawler Mounted Pile Hole Drilling Equipment
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Germany
Brand Name: ROSCHEN
Certification: ISO,CE
Model Number: 2'~12'
High Light:

Photovoltaic Pile Hole Drilling Rig

,

Photovoltaic Crawler Mounted Drilling rig

,

Photovoltaic Pile Hole Drilling Equipment

Payment & Shipping Terms
Packaging Details: Carton
Supply Ability: 1000 pieces
Specifications
Type: Diamond Core Drilling
Name: Diamond Core Drill Bits
Use: Geological Drilling
Usage: Exploration Core Drilling
Style: Wireline Core Drilling
Drills: Wireline Core Drilling
Model: Impregnated Diamond Core Bits
Series: Wireline Diamond Core Bits
Drilling: Exploration Core Drilling
Mining: Australia Mining
Exploration: Australia Exploration
Model No: Mining Exploration Core Drilling
Applications: Copper Mining Drilling
Product Description

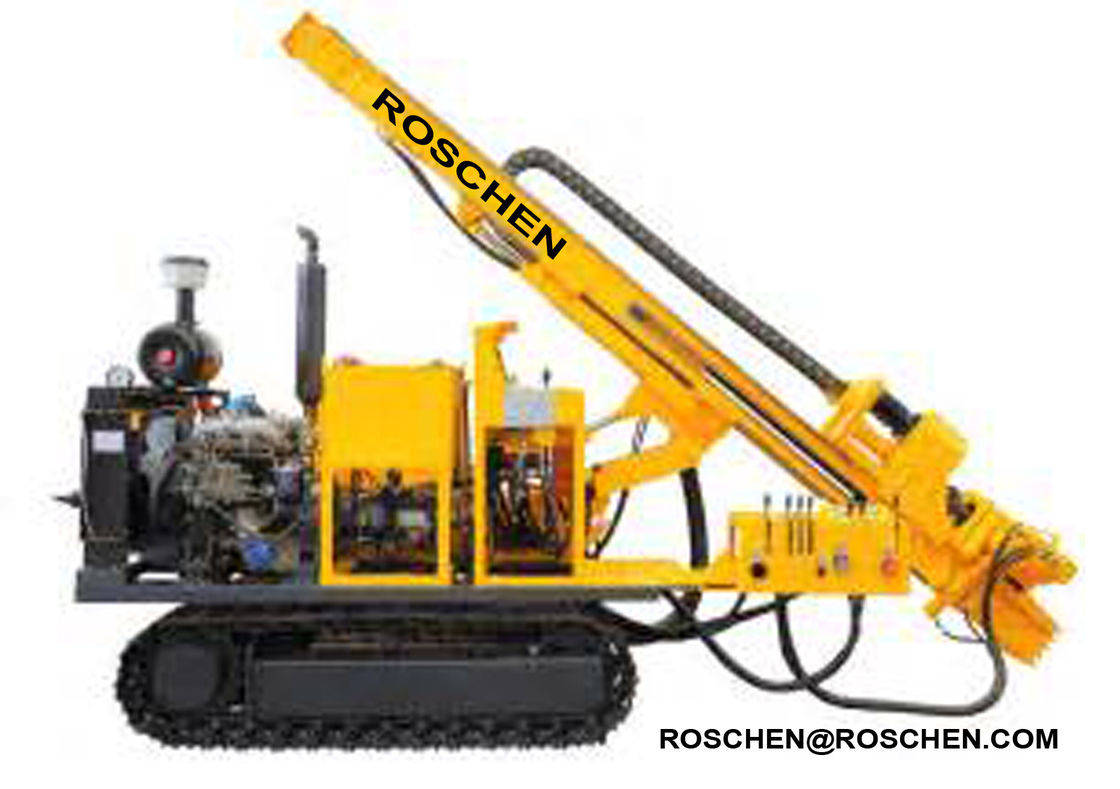

hydraulic photovoltaic pile hole drilling rig , Crawler mounted pile hole drilling equipment



50M depth hydraulic photovoltaic pile hole drilling rig , Crawler mounted SOLAR pile hole drilling equipment



Introduction:

RS-50 fully hydraulic drilling rig is multifunctional, mainly applied in photovoltaic solar spiral pile,constuction, highway, bridge, water conservancy, hydroelectricity, mine, tunnel and so on. It is widely used in engineering hole construction, such as foundation investigation hole, deep foundation pile anchor hole, road or dam foundation reinforcement holes, drain hole, open pit blast holes, water wells,foundation piles,The , water Wells,photovoltaic solar spiral pile,DTH blasting construction, etc.




Characteristics:

1. Hydraulic driven, smooth transmission, low noise, compacted control panel, easy to operate, labor-saving, safe and reliable.
2. Crawler chassis mounted, convenient and fast to move and position.
3. Main arm can move up and down, drilling tower slides on sliding frame, stable, safe and reliable.
4. Sliding frame can swing back and forth on the main arm seat, achieving drilling in angles, Besides, a meter is equipped on the sliding frame, showing drilling angles conveniently.
Moving of power head is driven by cylinder chain multi speed system with dual chain balance structure.
5. Multifunctional power head has features of sliding clearance compensation and adjustment compensation and stepless speed adjustment large torque slow speed
6. Power head has wide speed range, which can meet the requirement of various formation and different drilling process.


Technical Parameters
Model RS-50
Shipping Dimension(L*W*H)mm mm 2500×2270×3100
Working Dimension(L*W*H)mm mm 2500×3245×4180
Weight Kgs 5000
Air pressure Mpa 1.05-2.46
Bore diameter(DTH) (mm) mm 90-127
Bore depth(m) m 0-40
Drill pipe diameter(DTH) mm 76/89
Bore diameter(screw)(mm) mm 130-300
Drill pipe diameter(Screw) mm 130-400
Climb ability(.) ° 15°
Feed stroke mm 2500
Once promotion(mm) mm 2200
Compensation Length mm 800
Rotation speed rpm 0-160/0-80
Rotation Torque N.M 2250-4500
Pull back capacity Kg.f 2000
Walking speed(Slow) KM 0-4
Walking speed(Fast) KM 0-2
Boom extention mm 0-350
Max Swing of Boom ° 15L/R
Max Dump of Boom ° 0-105
Chassis floating Angle ° 10°
Host power(kw) Kw 56
