300M Water Well Drilling Machine For Water Well Drilling , Bridge Building , Geothermal Well Drilling

300M Water Well Drilling Machine For Water Well Drilling , Bridge Building , Geothermal Well Drilling
300M Water Well Drilling Machine For Water Well Drilling , Bridge Building , Geothermal Well Drilling 300M Water Well Drilling Machine For Water Well Drilling , Bridge Building , Geothermal Well Drilling 300M Water Well Drilling Machine For Water Well Drilling , Bridge Building , Geothermal Well Drilling 300M Water Well Drilling Machine For Water Well Drilling , Bridge Building , Geothermal Well Drilling 300M Water Well Drilling Machine For Water Well Drilling , Bridge Building , Geothermal Well Drilling 300M Water Well Drilling Machine For Water Well Drilling , Bridge Building , Geothermal Well Drilling

Large Image :  300M Water Well Drilling Machine For Water Well Drilling , Bridge Building , Geothermal Well Drilling

Product Details:

Place of Origin: Germany
Brand Name: ROSCHEN
Certification: ISO,CE
Model Number: 2'~12'

Payment & Shipping Terms:

Minimum Order Quantity: 1~5 piece
Price: Negotiate
Packaging Details: Carton
Supply Ability: 1000 pieces
Detailed Product Description
Name: Diamond Products Core Drill Bits Type: Core Drill Bit
Bits: Diamond Drill Bits Drill: Diamond Core Drill
Item: Diamond Core Drill Bit Origin: China Diamond Core Drill Rigs
Supplieers: Core Bore Drills Supplieers New: 2017 Milwaukee Diamond Core Drill Bits
Series: Wireline Diamond Core Bits Model: Impregnated Diamond Core Bits
Drilling: Exploration Core Drilling Use: Wireline Core Drilling
Mining: Australia Mining Exploration: Australia Exploration
Model No: Mining Exploration Core Drilling Usage: Africa Mining
Applications: Copper Mining Drilling
High Light:

300M Water Well Drilling Machine

,

300M Bridge Building drilling rigs

,

115KW Diamond Core Drill Bit

300M water well drilling machine for water well drilling, bridge building, geothermal well drilling




Product Description

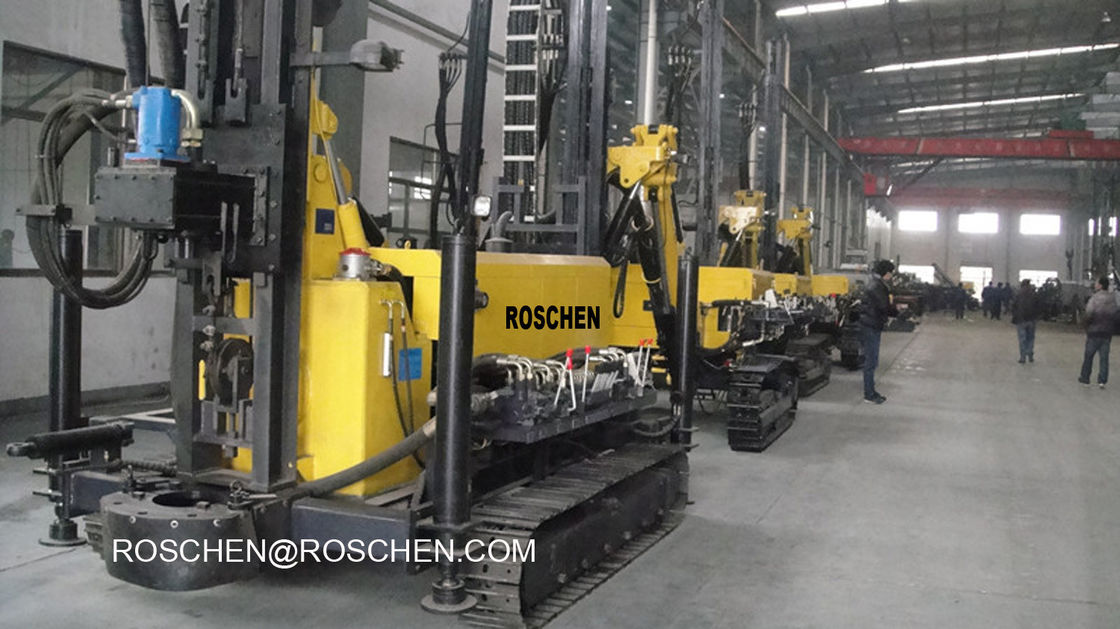

Max 300m deep water well drilling equipment RS-300 water boring machine is a portable water drill rig, widely used for water well drilling, bridge building, geothermal well drilling, big conservancy project, etc. It is widely exported to Nigeria, Chile, Uganda, Congo, Malaysia, Chile, Peru, etc.



Characteristics:


Features of Max 300m deep water well drilling equipment DFT-300 water boring machine:


1. It is a fully hydraulic rotary drilling rig.
2. This rig is a rotary drilling rig with directional circulation, which is equipped with BW850/2A mud pump. It adoptsthe slurry as the washing fluid, it can drill on clay, sand and rock. It is also a pneumatic drill rig, powered by air compressor and DTH hammer, most powerful for hard rocks.
3. The power comes from the diesel engine; the rig sets up distribute implement and hydraulic system.
4. The adding pressure implement is hydraulic, so it has a high efficiency when the rig drill on mud rock and weathering formation through using the adding pressure implement.
5. The master driving of rig, the four jacks and mast are hydraulic operated. Distribute box, sewage pump, master driving clutch system are air operated.
6. It has a high efficiency because of having a larger torque of the turntable, it is mainly used for water well, construction, national defense building foundation, geological exploration, geothermic well and other foundation working. It is popular with domestic and foreign clients.



Technical Parameter
Model RS-300 Water Well Drilling Rig
Max 300m deep water well drilling equipment DFT-300 water boring machine
Specifications:
Drilling depth 300
Diameter of hole 500
Turntable through hole diameter (mm) 500
Turntable forward speed (r / min) 50;75;114
Reverse turntable speed (r / min) 50;75;114
Forward wheel torque (kN.m) 13.2;8.8;5.8
Reverse torque turntable (kN.m) 13.2;8.8;5.8
Hoist lifting capacity (single rope) (KN) 30
Faucet carrying capacity (KN) 150
Main drill (mm) Dia. 108x108x7500
Vice drill pipe (mm) Dia.89x10x5500
Operating state (mm) 9677x2480x13600
Transport position (mm) 12500x2480x3500
Engine Type: Water-cooled four Nanchang Kama NC6110ZG17-20
Stroke, turbocharged and intercooled diesel engine
Rated power 115KW
Rated speed 1100r / min
Output torque 600N.M
Mud Pump Model: RS-850
Bore (mm): 150
Stroke (mm): 180
Stroke times (min-1): 82,58
Displacement (L / min): 850,600
Pump pressure (MPa): 2,3
Input power (KW): 40 (54HP)



After-Sales Service:
1. One year quality guarantee for main machine;
2. Training: operation manual, overseas installation is also available;
3. Spare parts are available in our factory at cost price for former customers;
4. 24 hour on-line guidance for operation and maintenance.
