400m Water Well Drilling Rig Machine With Eaton Hydraulic Motor 12T Feed Force
400m Water Well Drilling Rig Machine With Eaton Hydraulic Motor 12T Feed Force
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: CHINA
Brand Name: ROSCHEN
Certification: ISO
Model Number: RS-400
High Light:

12T Feed Force Drilling Rig

,

400m Water Well Drilling Rig

,

400m Water Well Drilling machine

Payment & Shipping Terms
Specifications
Drilling Diameter: 105-400mm
Type: Rotary Drilling Rig
Model: Drilling Machine
Name: Drill Rig
Model No.: Hydraulic Drilling Rig
Usage: Water Well Drilling
Drilling Methold: DTH Drilling & Mud Drilling
Series: Crawler Drilling Rig
Rotary Torque: 4600-9200N.M(Two Gear)
Drill Pipe Length: 3m/4m
Drilling Depth: 400m
Winch: Hydraulic
Feed Force: 12T
Engine Brand: Cummins, Deutz
Engine Power: 132KW
Gradeability: 21°
Product Description

400m Water Well Drilling Equipment with Eaton Hydraulic Motor 12T Feed Force



Roschen Group Limited



Roschen Group Limited, for more than 60 years we have specilized in research, development and produce of rock blasting drilling rig, water well drilling rig, diamond core drilling rig, anchor drilling rig, and relative accessories & drilling services. constantly provide professional drilling solutions for all customers with our advanced technology, excellent equipment, strict testing means and perfect service network, which establish our brand “ROSCHEN” a good image of market, now, Jinke products account for 50% of domestic market and have been export to more than 80 countries, and we awarded ISO9001: 2000 in November, 1995.


Now, our factories for rock blasting drilling rig, water well drilling rig, diamond core drilling rig, anchor drilling rig, and relative accessories occupy an area of 28000 square meters with more than 500 employees, including fifty five engineers from Ingersoll Rand and former Altas Copco, , with excellent technology and solid market service capabilities, we have both a sound marketing system and excellent service support system, which help us win confidence of customers both at home and abroad. Meanwhile, we are agent of movable double screw air compressor of Atlas Copco, Sullair, Liutech, by which , we can provide drilling rig users with high quality professional air compressor solution and relative after-sales service also.


Roschen will always focus on the strategic conception of "Survival by quality, Development by credit", to provide users with high quality drilling solutions.In our after sales service system. We establish perfect control system strictly according to ISO-9000 series, in this system, technology date and problem solve solution and preventive measures will be provided in any maintain project, all the spare parts will be used in new OEM products with installation instructions, packing list, manufacturer's instruction, qualification and Warranty certificate.

We provide one equipment & one case, endless service, namely the after sales service begin from the order confirmation, last for the working life of the equipment.



For more than 80 years we have specialized in research, development and produce of rock blasting drilling rig, water well drilling rig, diamond core drilling rig, anchor drilling rig, and relative accessories & drilling services. constantly provide professional drilling solutions for all customers with our advanced technology, excellent equipment, strict testing means and perfect service network, which establish our brand “ROSCHEN” a good image of market, now, ROSCHEN products account for 100% of global market.



400m Water Well Drilling Equipment with Eaton Hydraulic Motor 12T Feed Force



Basic information
Categories Water Well Drilling Rig
Brand Name: ROSCHEN
Model Number: RS-400
Certification: ISO,CE
MOQ: 1set
Price: Negotation
Payment Terms: T/T, L/C, D/P
Supply Ability: Based On Detailed Order
Delivery Time: 15-20 days
Packaging Details: Standard Export Package
Warranty: 1 Year
After-Sales Service: 7X24hours Available
Drilling Diameter: 105-400mm
Drilling Depth: 400m
Drill Pipe Length: 3m/4m
Rotary Torque: 4600-9200N.M(Two Gear)
Usage: Water Well Drilling
Type: Rotary Drilling Rig
Drilling Methold: DTH Drilling & Mud Drilling
Winch: Hydraulic
Feed Force: 12T
Engine Brand: Cummins
Engine Power: 132KW
Gradeability: 21°
Working Air Pressure: 1.2-4.5MPa
Air Consumption: 16-60m3/Min
Mud Pump: RS-250, RS-450




400m Water Well Drilling Equipment with Eaton Hydraulic Motor 12T Feed Force

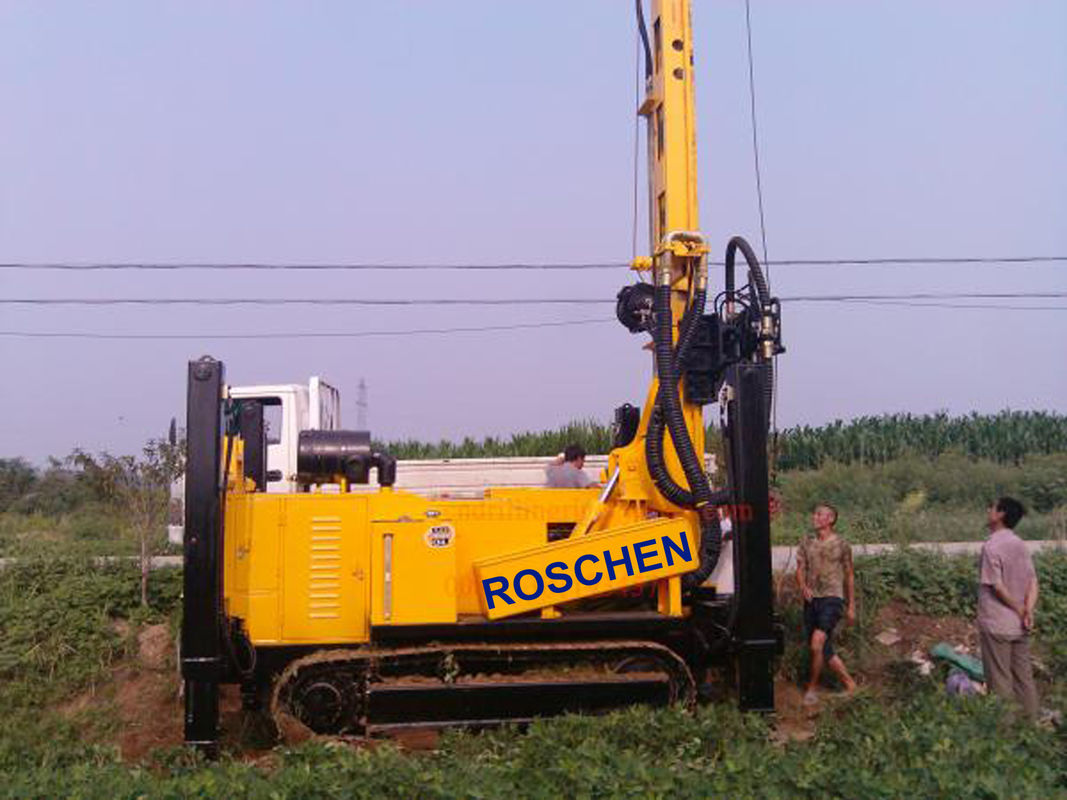

RS-400 borehole drilling machine drive by Cummins engine and Eaton hydraulic motor for 400m water well drilling





RS-400 Multi-functional track mounted water well drilling rig is a efficient,multi-function full hydraulic water well drilling rig.It is high efficiency because of having a larger torque of the turntable and is mainly used for water well in industry and agriculture, national defense building foundation, geological exploration, geothermic well and other foundation working, it is popular at home and abroad. JKS400 crawler mounted drilling rig can drilling in all kinds formations by mud drilling in soft formation and air DTH hammer in rock drilling, DTH Hammer is applied in rock drilling, slag is discharged by air pressure and the offstage efficiency is ten times than traditional rotary drilling.




Characteristics:


1. The drilling rig can use air DTH Hammer drilling and mud drilling.

2. Centralized control console is suitable for each manipulation and control. Rapid pulling and lifting reduce the auxiliary time and enhance the work efficiency. 3.The main drive system, the transfer case, gearbox, double-winch unit, mud pump, turntable,drilling tower, feed system are set up on the chassis.

4. Its a hydraulicrotary drilling rig with directional circulation. It can equipped with BW350 mud pump which adopts the slurry as the washing fluid and can drill on clay, sand and rock if it is equipped with suitable drilling bit.

5. The power of drilling rig comes from a Cummins engine,132kw Cummins engine drives the large displacement high pressure plunger pump and it is characterized by powerful dynamic and stable performance.

6. The rotary head,have two gear,rotation speed is 0-50 and 100rpm stepless adjustment and the rotary torque is 11000Nm.

7. The pulling force can be regulated and controlled, which adapt the machine to deep hole drilling.

8. It can set up a generator which is convenient to welding or illuminate for work at night.

9. Main winch are available on the rig so it is high efficiency when the rig drill on mud rock and on the weathering formation.

10. Competitive in price, low cost of maintain.



Specifications:

1 Geology drilled   All kinds
2 Drilling Type   DTH & Mud Rotary
3 Drill system and operation   Hydraulic
4 Hole Diameter mm Φ105—Φ400
5 Hole Depth m 400
6 Rotation Torque N/M 9000-11000
7 Rotation Speed rpm 0-50 1st Gear
0-100 2nd Ger
8 Drill pipe diameter mm 89/102/114/127
9 Drill pipe length mm 3000/4500
10 Max. Feed Speed M/min 0-25
11 Max. Lifting Speed M/min 5 ~ 14
12 Feed Stroke mm 5200
13 Max. Lifting force N/M 250000
14 Feed Cylinder Diameter mm 160
15 Max.Pulldown Force N/M 85000
16 Lifting force of Main winch(Optional) T 4
17 Lifting force of hoist T 1.5
18 Lifting height of tool winch m 40
Engine
19 Diesel Engine type CUMMINS
20 Model 6BT5.9-C150
21 Rated Horse power Kw 132
22 Electrical System Volt 24
Compressor required
23 Compressor Type Rotary Screw/Movable
24 Pressure Required Mpa 1.05—4.5
25 Air consumption m³/min 16—60
Mud Pump(Optional)
26 Type   Hydrulic
27 Model   BW450
28 Stroke mm 110
29 Displacement L/Min 450
30 Discharge pressure (Mpa) Mpa 2 ~ 3
31 Suction tube diameter mm 89
32 Discharge pipe diameter mm 51
33 Liner Diameter mm 80
Hydraulic Welder(Optional)
34 Mnufacturer   Dynaset
35 Welding current A 60-250
36 Hydraulic Min.oilflow L/min 42
37 Nom/Max Pressure Bar 190/210
38 Voltage V 110/220VDC
39 Power Kw 1 or 2
40 L*W*H mm 390*190*230
Dimension
41 Net Weight T 14
42 Shipping Length mm 8000
43 Shipping Width mm 2300
44 Shipping Height mm 3050
45 Ground Clearance mm 300
