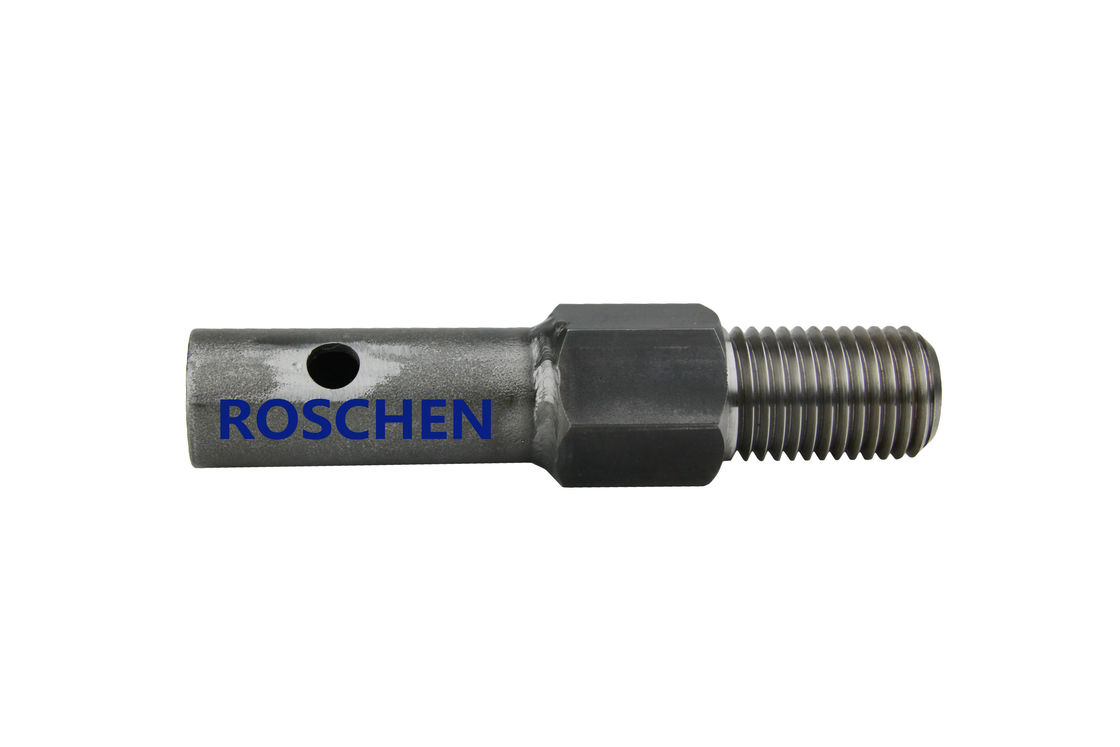

Threaded-to-Hex Adapters DCDMA standard Drill Rods for AW, AWJ, BW, BWJ, NW, NWJ Drill Pipe
Threaded-to-Hex Adapters DCDMA standard Drill Rods for AW, AWJ, BW, BWJ, NW, NWJ Drill Pipe
Threaded-to-Hex Adapters – are available from ROSCHEN to connect DCDMA specified J-Series or W-
Design Drill Rod threads to industry standard Hex connections for use with Sideport Water Swivels or other specialty applications around your job site.
When ordering make sure you check Box to Pin, Shank to Pin, Shank to Box and Box to Box requirements
| Hex Box | Threaded Pin | Assembly Part No |
| 1-1/8-inch (29mm) | AW | 28005 |
| 1-1/8-inch (29mm) | AWJ | 28006 |
| 1-5/8-inch (41mm) | AW | 28007 |
| 1-5/8-inch (41mm) | AWJ | 28159 |
| 2-inch (51mm) | 3-1/2" API Regular | 28286 |
| 2-inch (51mm) | 2-3/8" API Regular | 28390 |
| Hex Shank | Threaded Pin | Assembly Part No |
| 1-1/8-inch (29mm) | AWJ | 28149 |
| 1-5/8-inch (41mm) | AWJ | 28008 |
| 1-5/8-inch (41mm) | NW | 28009 |
| 1-5/8-inch (41mm) | NWJ | 28010 |
| 2-inch (51mm) | AW | 28011 |
| 2-inch (51mm) | AWJ | 28012 |
| 2-inch (51mm) | NW | 28013 |
| 2-inch (51mm) | NWJ | 28014 |
| Hex Shank | Threaded Box | Assembly Part No |
| 1-1/8-inch (29mm) | AW | 28015 |
| 1-1/8-inch (29mm) | AWJ | 28016 |
| 1-5/8-inch (41mm) | AW | 28017 |
| 1-5/8-inch (41mm) | AWJ | 28018 |
| 1-5/8-inch (41mm) | NW | 28019 |
| 1-5/8-inch (41mm) | NWJ | 28020 |
| 2-inch (51mm) | NW | 28021 |
| 2-inch (51mm) | NWJ | 28022 |
| Hex Box | Threaded Box | Assembly Part No |
| 1-5/8-inch (41mm) | AW | 28133 |
| 1-5/8-inch (41mm) | AWJ | 28152 |
| 2-inch (51mm) | 3" x Matrix Double-Start | 28300 |
| 1-1/8" (29mm) | 2-3/8" Mayhew Junior | 28334 |
| 1-1/8" (29mm) | NWJ | 28414 |
| 2-inch (51mm) | NWJ | 28422 |
| 1-5/8-inch (41mm) | 2-3/8" Mayhew Junior | 28446 |
