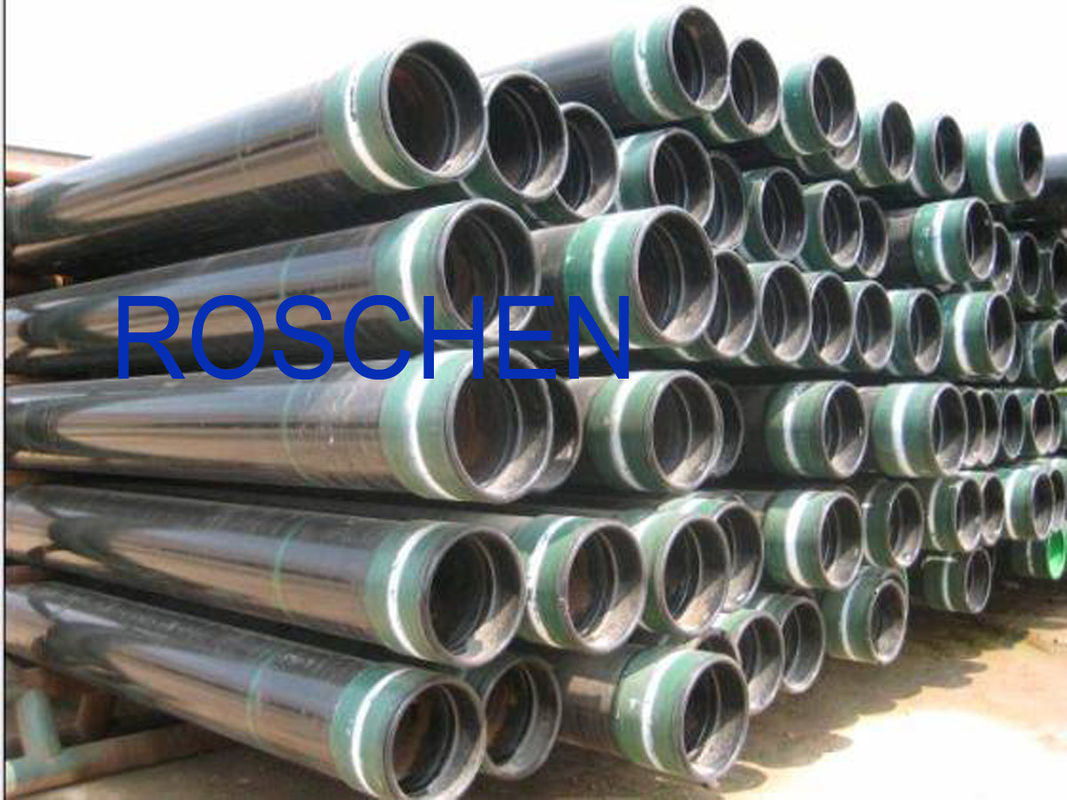

Wireline Drilling Casing Pipe (AW BW NW HW HWT PW PWT) For Wireline Diamond Coring Drilling
Wireline Drilling Casing Pipe (AW BW NW HW HWT PW PWT) For Wireline Diamond Coring Drilling
Brief Introductions of Casing Pipe:
It is used for protecting subsurface formations. It also protects the wellbore from collapsing. Owing to its functions, circulation and extraction of drilling fluid are allowed to take place. Roschen have years of experience in producing quality casing pipes, any of your requirements will be warlmly welcomed.
Features of Casing Pipe:
1) Use optimized buttress thread so that the connecting strength can reach the strength of the pipe body.
2) High seal reliability: this product has the multi-seal configuration.
3) The joint has high capability to resist compression, bending and over-torque load with the reverse torque internal shoulder.
4) Energy loss reduction: the air and liquid turbulence are reduced by the inner flat design.
| Available size for Casing Pipe: | |
| "W" Design: | RW,EW,AW,BW,NW,HW,PW,SW,UW,ZW/HWT,PWT |
| Metric Series: | 46,56,66,76,86,101,116,131,146 |
| "X" Design: | RX,EX,AX,BX,NX,HX,PX,SX,UX,ZX |
| Q Series Drill Rods | |||
| Size | Outside diameter(mm) | Inside diameter(mm) | Wall thickness(mm) |
| AQ rod | 44.5 | 34.9 | 4.8 |
| BQ rod | 55.5 | 46 | 4.75 |
| NQ rod | 71 | 60 | 5.5 |
| HQ rod | 88.9 | 77.9 | 5.5 |
| PQ rod | 114.3 | 103.4 | 5.5 |
| Casing Rods | |||
| Size | Outside diameter(mm) | Inside diameter(mm) | Threads per inch |
| NW | 88.9 | 76.2 | 4 |
| HW | 114.3 | 101.6 | 4 |
| PW | 139.7 | 127 | 4 |
| 6" | 168 | 149 | 4 |
| WL46 | 44.15 | 37.15 | 4 |
| WL56 | 54.15 | 47.15 | 4 |
| WL66 | 64.25 | 57.25 | 4 |
| WL76 | 74.25 | 67.25 | 4 |
| WL86 | 84.25 | 77.25 | 4 |
| WL101 | 98 | 88.3 | 4 |
| WL116 | 113 | 103.3 | 4 |
| WL131 | 128 | 118.3 | 4 |
| WL146 | 143 | 133.3 | 4 |
| Drill Rod Data | ||||||
| I.D. | O.D. | Weight/10' | Vol /100' | |||
| Size | inch/mm | inch/mm | Kg | Lbs | Litre | U.S. Gal. |
| A | 1.375"/34.9mm | 1.750"/44.5mm | 14.04 | 31 | 29.14 | 7.7 |
| ATW | 1.437"/36.5mm | 1.750"/44.5mm | 12.05 | 26.6 | 31.79 | 8.4 |
| B | 1.812"/46.0mm | 2.188"/56.6mm | 18.12 | 40 | 50.72 | 13.4 |
| BTW | 1.909"/48.5mm | 2.225"/56.5mm | 15.76 | 34.8 | 56.02 | 14.8 |
| N | 2.375"/60.3mm | 2.750"/69.9mm | 23.55 | 52 | 87.05 | 23 |
| NTW | 2.525"/64.2mm | 2.875"/73.0mm | 22.83 | 50.4 | 98.4 | 26 |
| H | 3.062"/77.8mm | 3.500"/88.9mm | 34.88 | 77 | 144.58 | 38.2 |
| P | 4.062"/103.2mm | 4.625"/117.5mm | 48.02 | 106 | 255.1 | 67.4 |
| Coring Bit Data | ||||
| Core Diameter | Hole Diameter | Hole Volume | ||
| Size | inch/mm | inch/mm | Litres/100Mtr | U.S. Gal./100Ft |
| A | 1.062"/27.0mm | 1.890"/48.0mm | 181 | 14.6 |
| ATW | 1.185"/30.1mm | 1.890"/48.0mm | 181 | 14.6 |
| B | 1.432"/36.5mm | 2.360"/60.0mm | 282.2 | 22.7 |
| BTW | 1.656"/42.0mm | 2.360"/60.0mm | 282.2 | 22.7 |
| N | 1.875"/47.6mm | 2.980"/75.7mm | 451 | 36.3 |
| NTW | 2.205"/56.0mm | 2.980"/75.7mm | 451 | 36.3 |
| H | 2.500"/63.5mm | 3.782"/96.0mm | 724.4 | 58.3 |
| P | 3.345"/85.0mm | 4.827"/122.6mm | 1180.4 | 95.1 |
| Casing Data | ||||||
| I.D. | O.D. | Weight/10' | Hole Volume | |||
| Size | inch/mm | inch/mm | Kg | Lbs | Liter/100Mtr | U.S.Gal./100Ft |
| AW | 1.90"/48.26mm | 2.350"/59.69mm | 17.21 | 38 | 85.3 | 18.8 |
| BW | 2.375"/60.2mm | 2.975"/75.44mm | 31.71 | 70 | 136.2 | 30 |
| NW | 2.99"/75.95mm | 3.620"/91.95mm | 38.95 | 86 | 202.4 | 44.5 |
| HW | 3.93"/99.82mm | 4.630"/117.6mm | 51.19 | 113 | 331.1 | 72.8 |
| PW | 4.84"/122.94mm | 5.660"/143.7mm | 65.23 | 144 | 494.8 | 108.8 |
Stocks is available by any time.
